Assembly

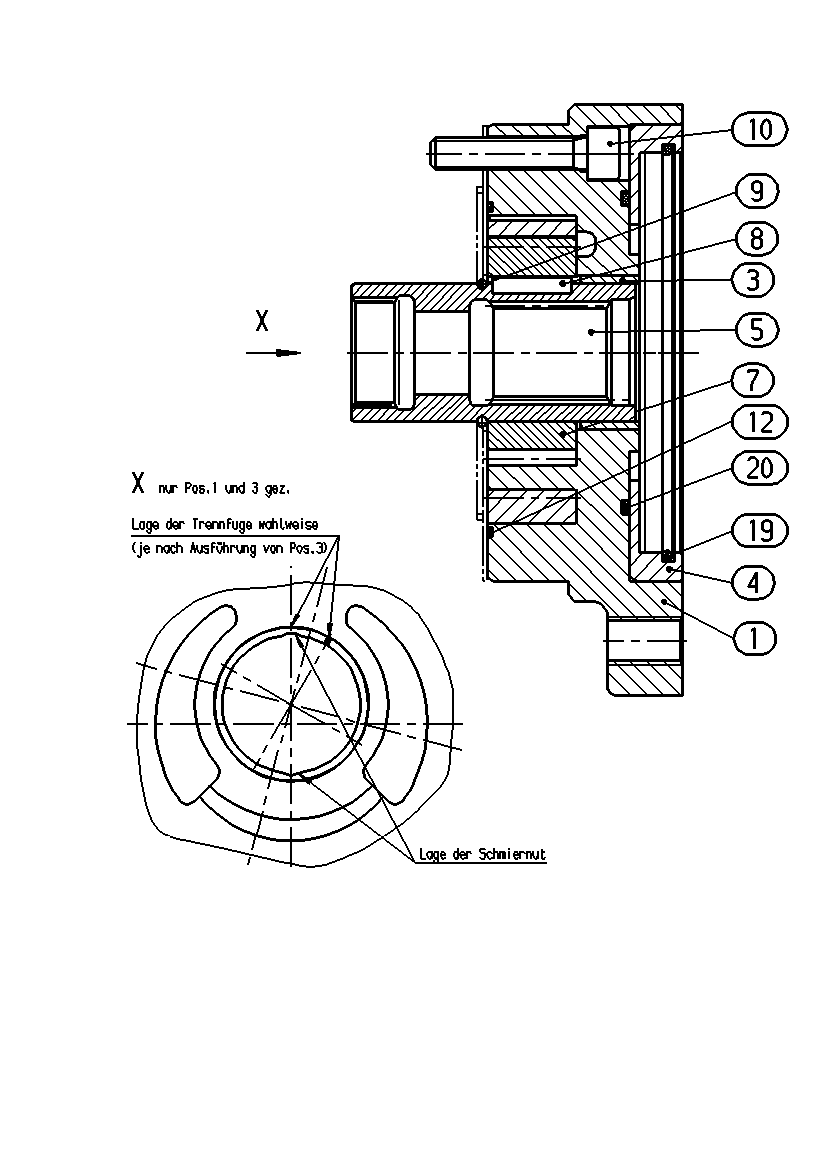

INTERNAL GEAR PUMPR902079440
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902079381 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R902055516 | THROUGH DRIVE SHAFT | 1 | |
| R902260548 | BUSHING | 1 | ||
| R909444103 | INTERMEDIATE RING | 1 | ||
| R902006257 | WHEEL SET | 1 | ||
| R902244316 | PARALLEL KEY | 1 | ||
| R913057611 | SNAP RING | 1 | ||
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| 19 | R913032365 | O-RING | 1 | |
| R913054822 | BURL SEAL RING | 1 |
