Assembly

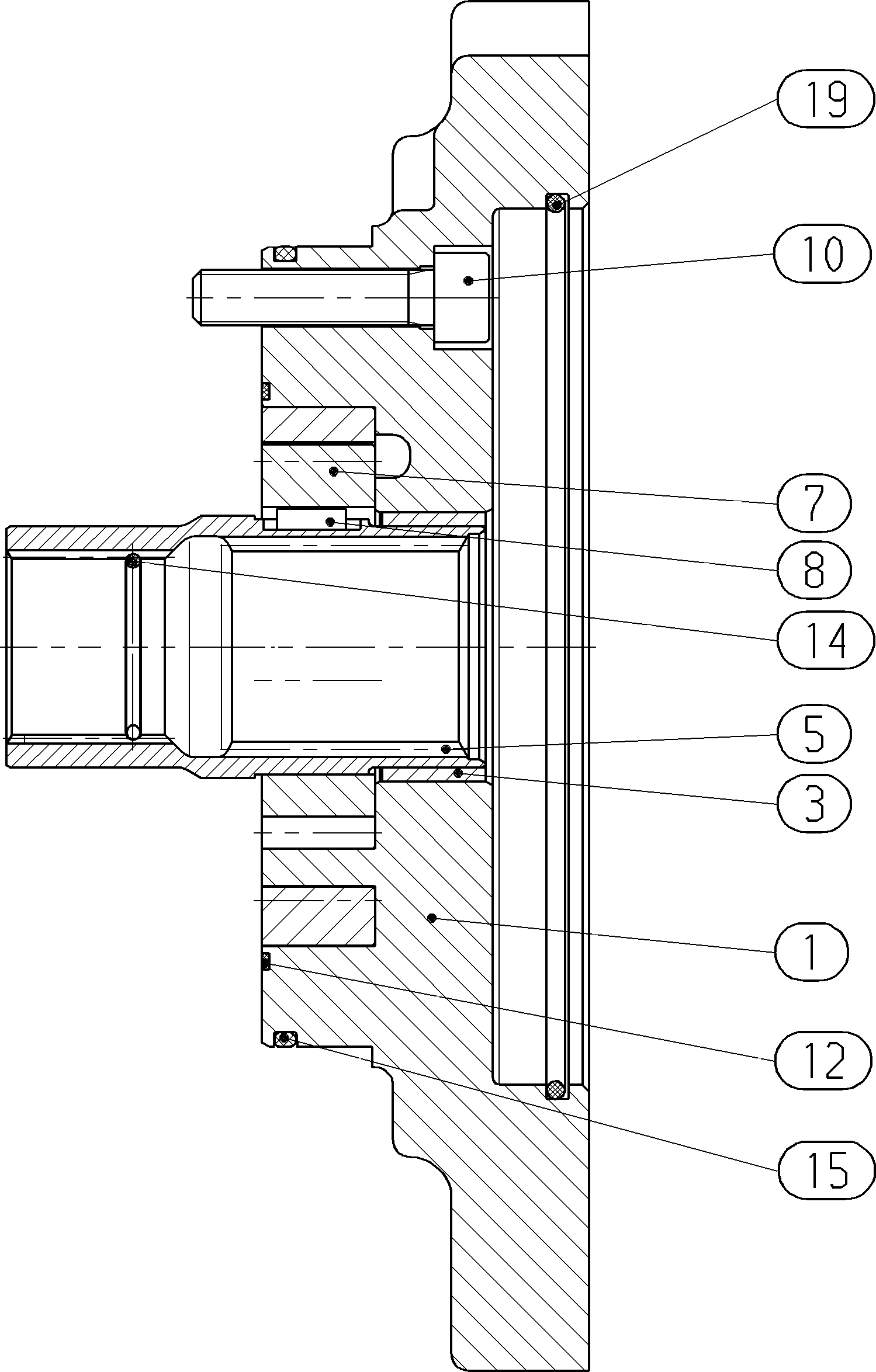

INTERNAL GEAR PUMPR902079446
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902272467 | FLANGE HOUSING | 1 | ||
| R902260548 | BUSHING | 1 | ||
| R902258110 | THROUGH DRIVE SHAFT | 1 | ||
| R902020030 | WHEEL SET | 1 | ||
| R902025652 | PARALLEL KEY | 1 | ||
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| — | KANTSEALD | 1 | ||
| R902601474 | SNAP RING | 1 | ||
| R909086547 | O-RINGD | 1 | ||
| — | O-RINGD | 1 |
