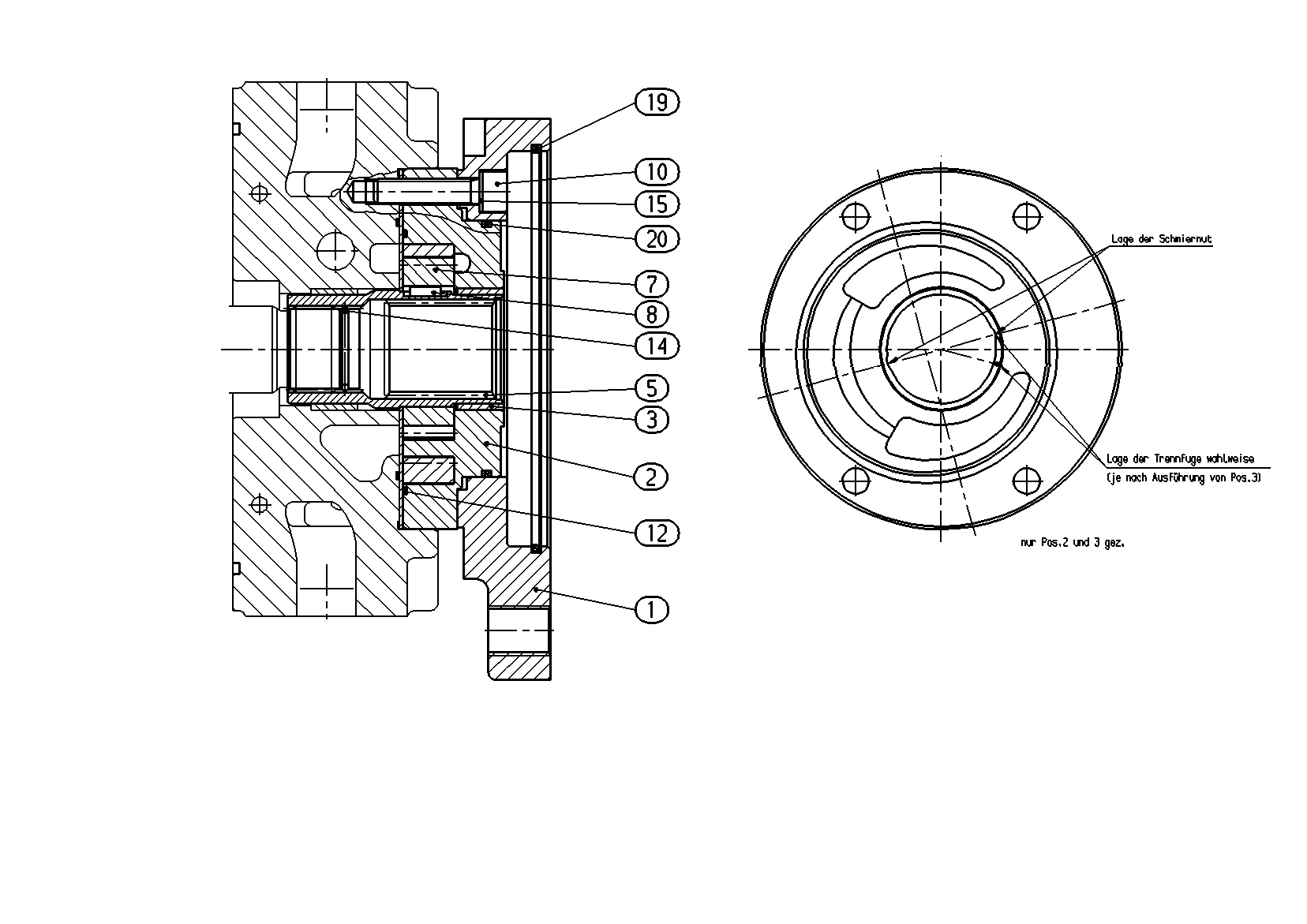

Assembly
INTERNAL GEAR PUMPR902079451
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902070311 | INTERMEDIATE FLANGE | 1 | |
| R902079387 | PUMP COVER | 1 | ||
| R902260548 | BUSHING | 1 | ||
| R902258112 | THROUGH DRIVE SHAFT | 1 | ||
| R902020031 | WHEEL SET | 1 | ||
| R902025640 | PARALLEL KEY | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| — | KANTSEALD | 1 | ||
| R902601474 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| — | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
