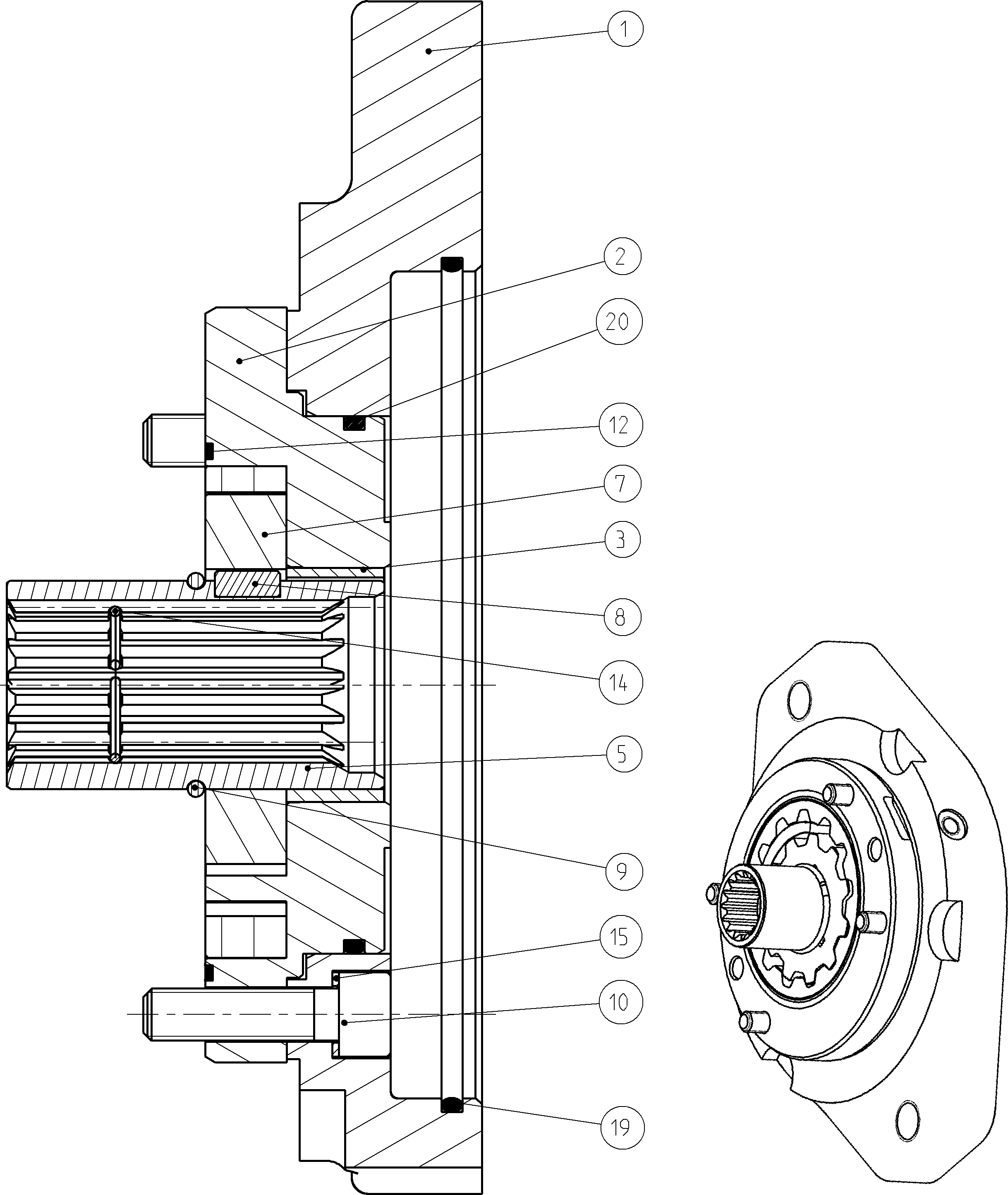

Assembly
HYDRAULIC GEAR PUMPR902079790
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909435041 | INTERMEDIATE FLANGE | 1 | ||
| R902079789 | HOUSING | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R902252296 | THROUGH DRIVE SHAFT | 1 | ||
| R902006255 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R913002054 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
