Assembly

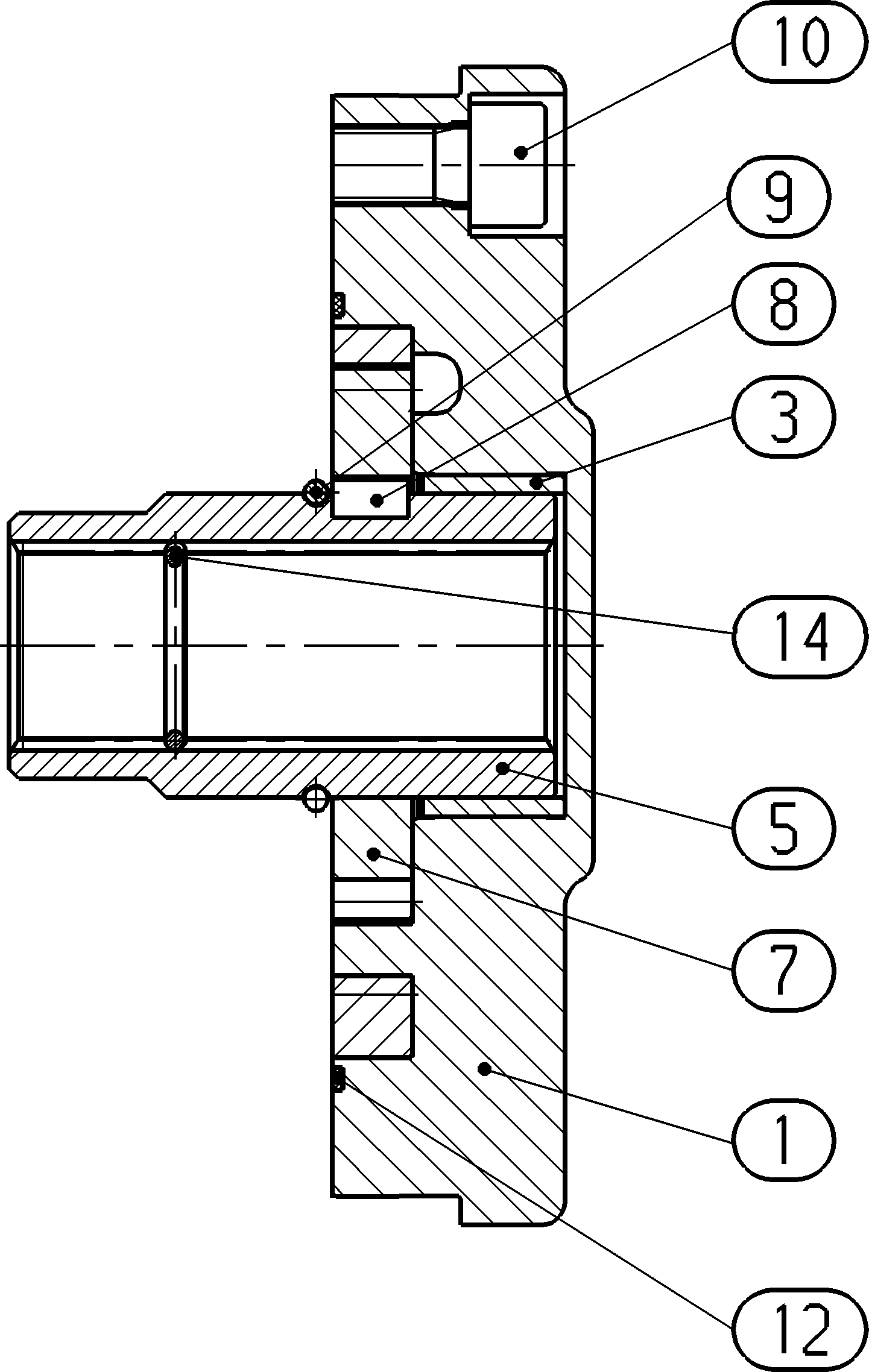

INTERNAL GEAR PUMPR902080172
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902080212 | PUMP COVER | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909650398 | THROUGH DRIVE SHAFT | 1 | ||
| R902006253 | WHEEL SET | 1 | ||
| R902252407 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601471 | SNAP RING | 1 |
