Assembly

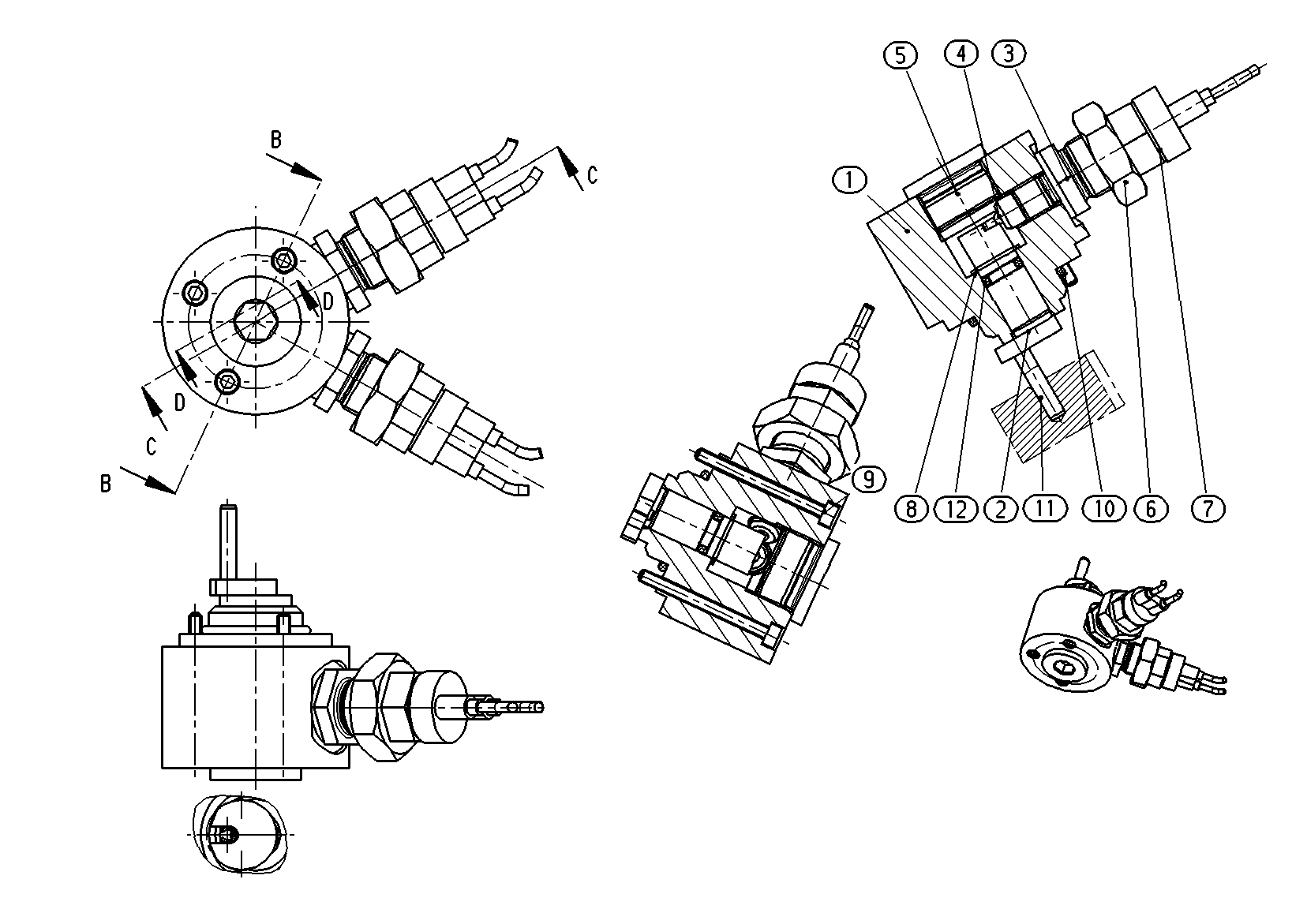

SWITCH ASSEMBLYR902080451
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902084608 | SWITCH HOUSING | 1 | ||
| R902084607 | SENSOR SHAFT | 1 | ||
| R902096375 | NECK | 2 | ||
| R902096376 | PRESSURE PIN | 2 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909830212 | HEXAGON NUT | 2 | ||
| R902601557 | SWITCH | 2 | ||
| R909083347 | RETAINING RING | 1 | ||
| R909156585 | SOCKET HEAD CAP SCREW | 3 | ||
| R909153615 | O-RING | 3 | ||
| R909153242 | SLOTTED SPRING PIN | 1 | ||
| R909083749 | O-RING | 1 |
