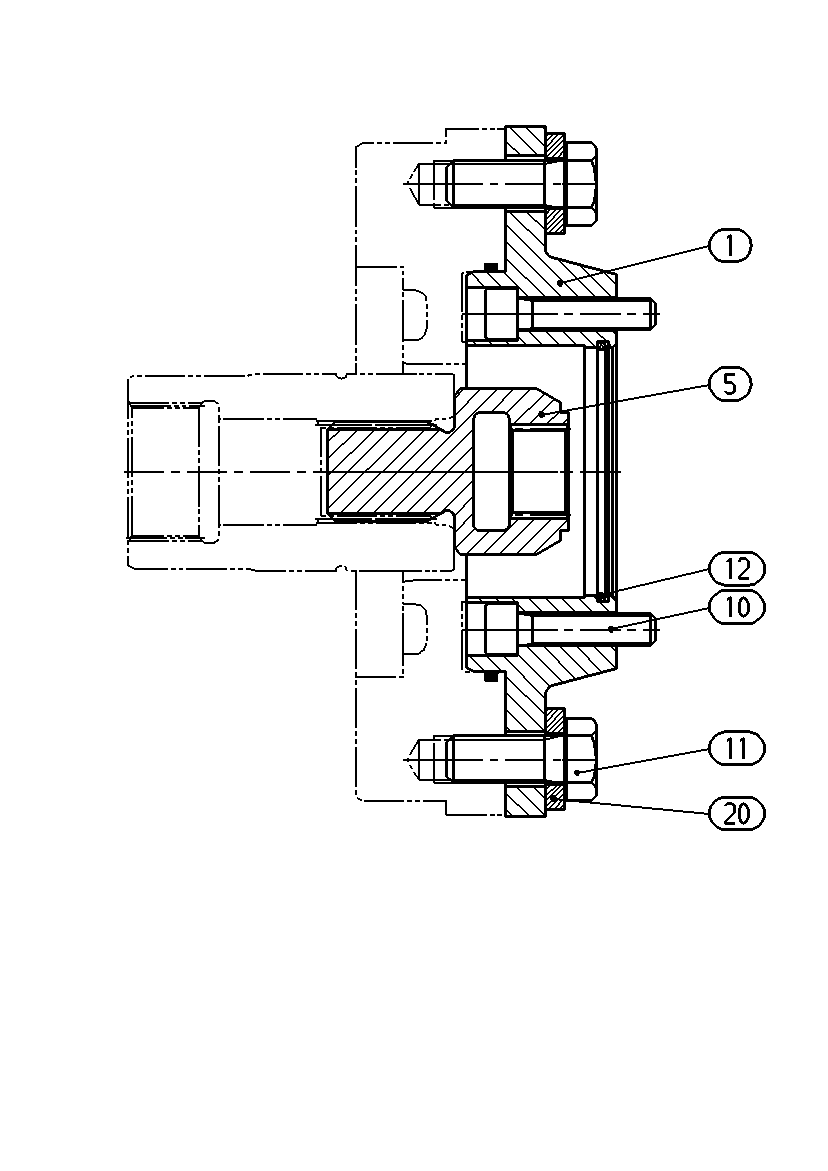

Assembly
BELL HOUSINGR902080462
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902602527 | INTERMEDIATE FLANGE | 1 | |
| 5 | R902080420 | COUPLING ADAPTER | 1 | |
| R909083041 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909153361 | HEXAGON SCREW | 2 | |
| 12 | R902602526 | O-RINGD | 1 | |
| R902021296 | WASHER | 2 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902602527 | INTERMEDIATE FLANGE | 1 | |
| 5 | R902080420 | COUPLING ADAPTER | 1 | |
| R909083041 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909153361 | HEXAGON SCREW | 2 | |
| 12 | R902602526 | O-RINGD | 1 | |
| R902021296 | WASHER | 2 |
