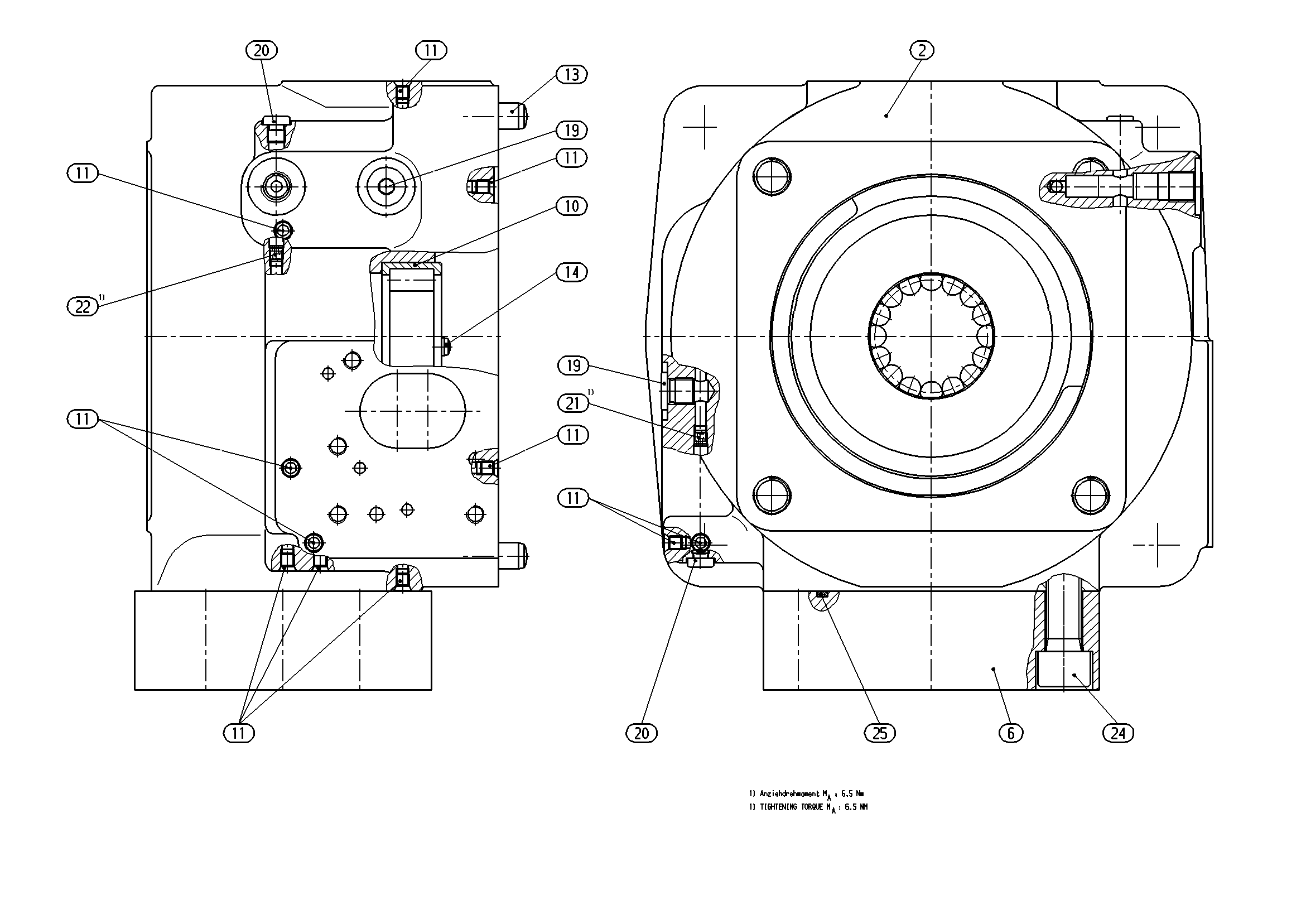

Assembly
CONNECTION PLATE, RLR902081095
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902229678 | CONNECTION PLATE, RL | 1 | ||
| R902032668 | REDUCING FLANGE | 1 | ||
| 10 | R909156745 | CYL. ROLLER BEARING | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R913009673 | STRAIGHT PIN | 2 | ||
| R909830529 | STRAIGHT PIN | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156495 | NOZZLE | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| R909083134 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086949 | O-RING | 1 |
