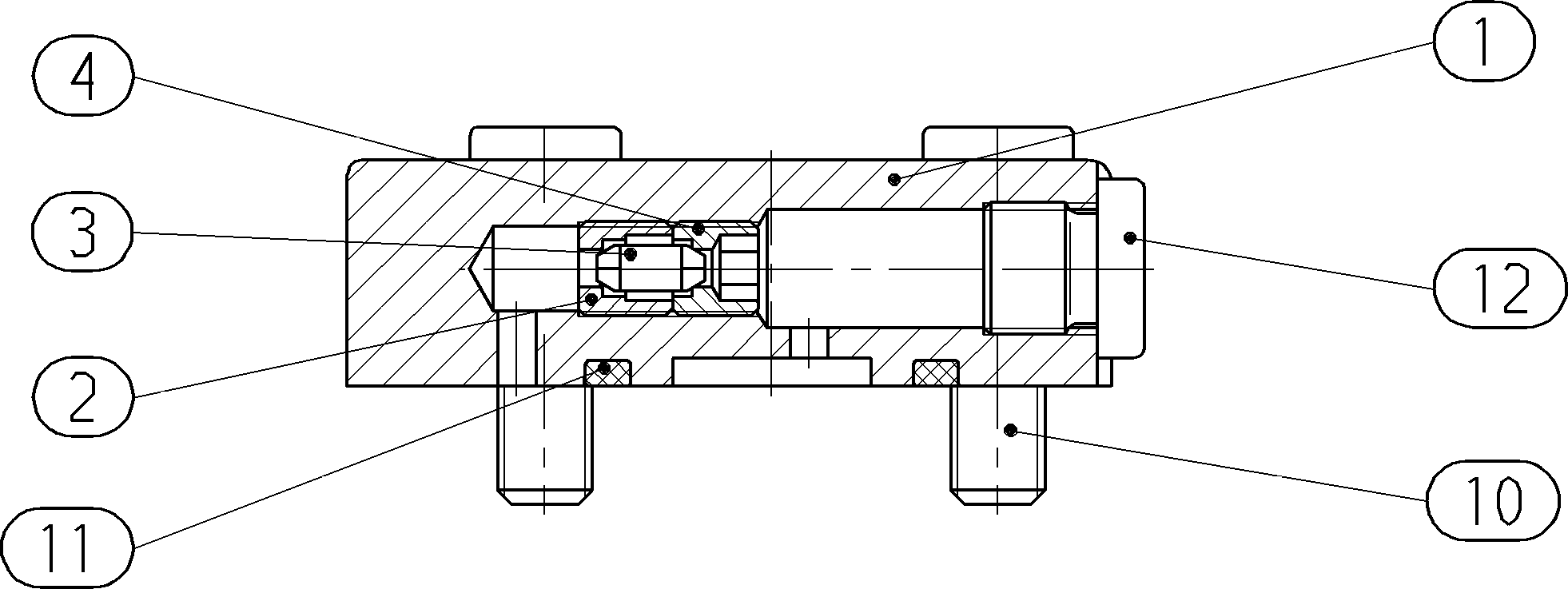

Assembly
COVERR902082236
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902082238 | COVER | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909446625 | THROTTLE PIN Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909831591 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151882 | O-RINGD | 1 | ||
| R902601850 | SCREW PLUGD | 1 |
