Assembly

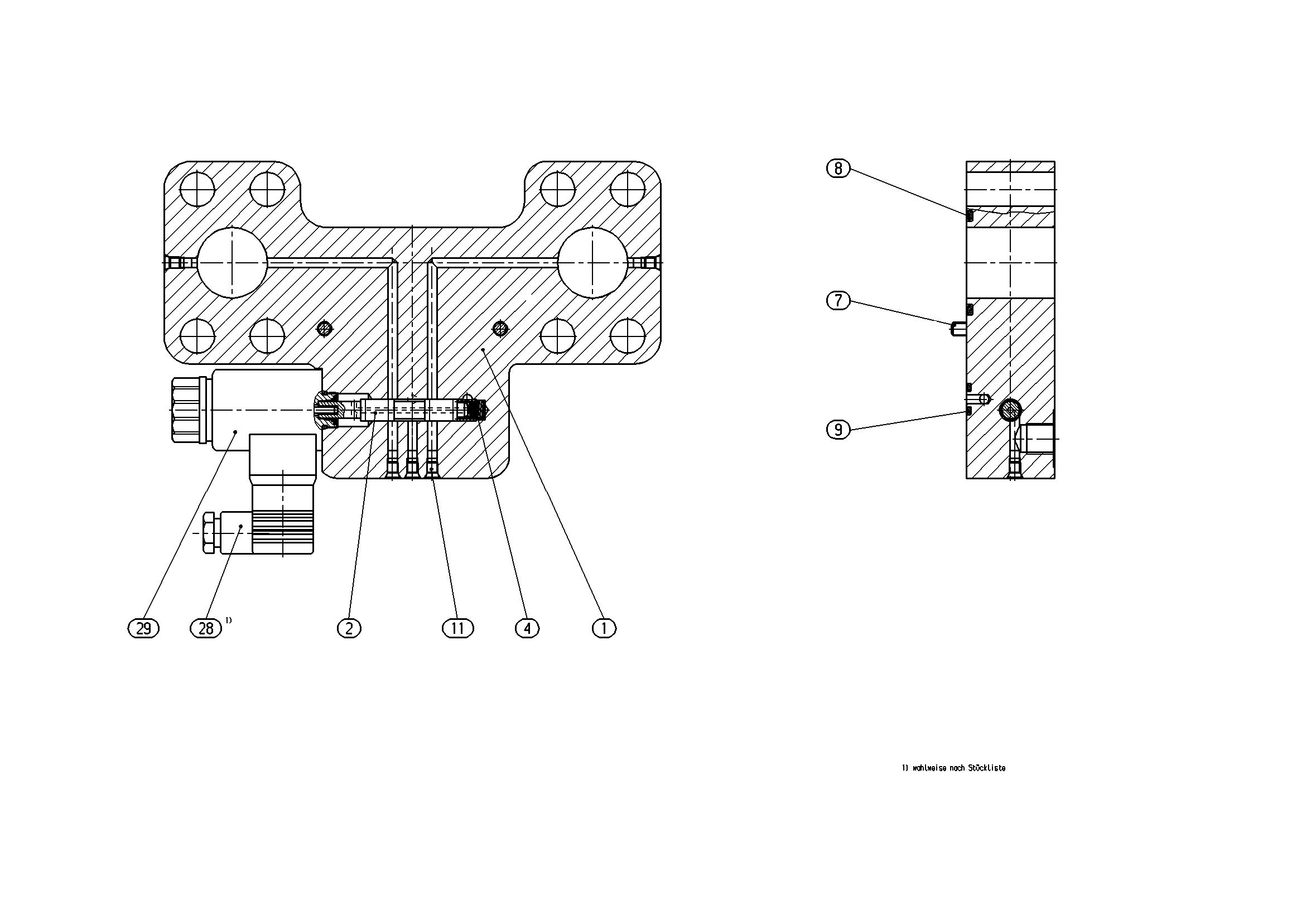

DIRECTIONAL-CONTROL VALVER902082427
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902045396 | INTERMEDIATE PLATE | 1 | |
| R902045129 | CONTROL PISTON | 1 | ||
| R902045064 | COMPRESSION SPRING | 1 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 2 | ||
| R909153784 | O-RINGD | 2 | ||
| R909152688 | O-RINGD | 1 | ||
| 11 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R902602691 | SWITCHING SOLENOID | 1 |
