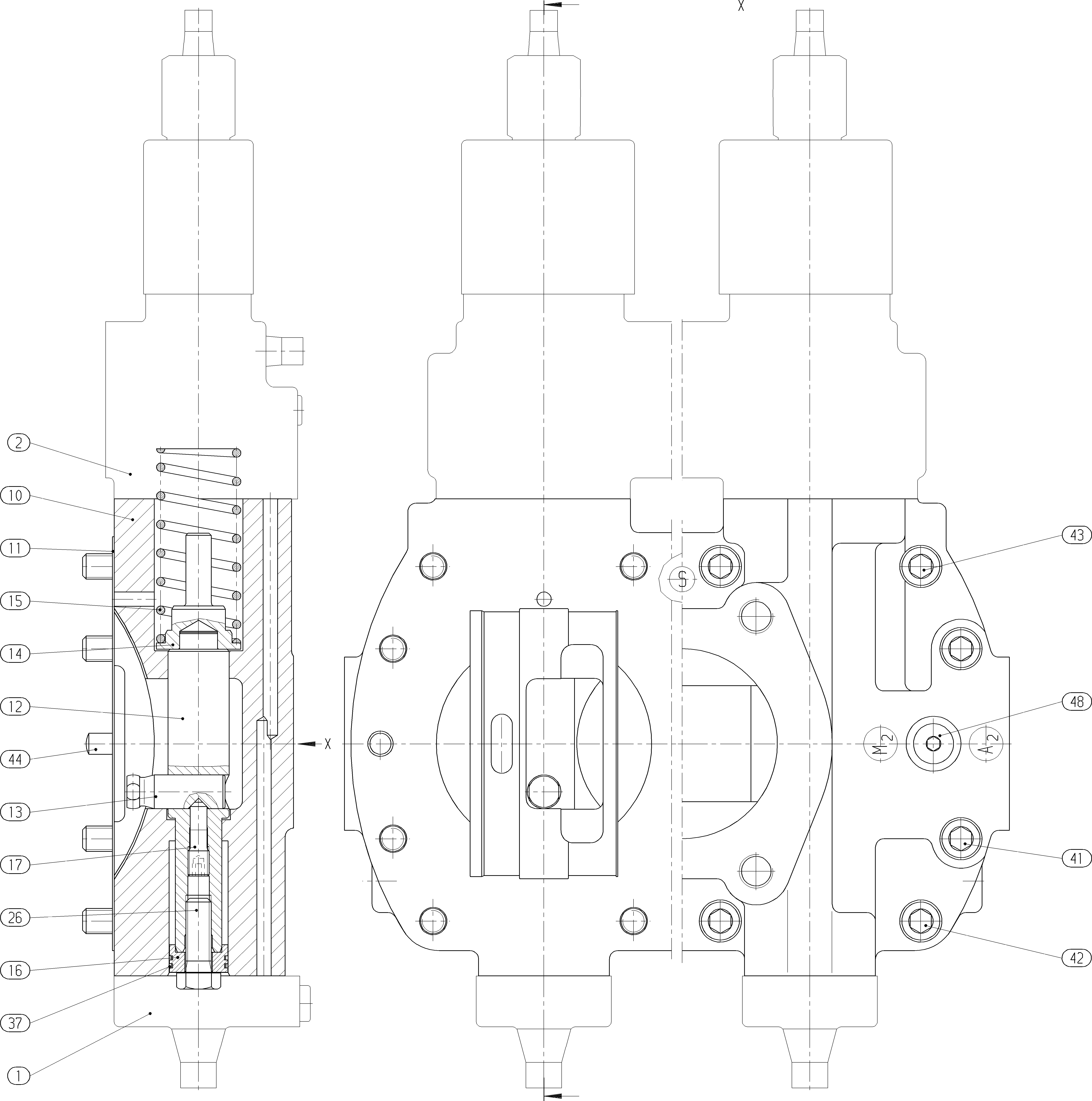

Assembly
CONTROLR902084292
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909603970 | COVER Assembly parts list →L | 2 | |
| R902084293 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902040003 | CONTROL HOUSING | 1 | ||
| 11 | R909650390 | SEALD | 1 | |
| R909921928 | POSITIONING PISTON | 2 | ||
| 13 | R902099043 | POSITIONING STUD | 2 | |
| R902075207 | SPRING DISK | 2 | ||
| R909426151 | COMPRESSION SPRING | 2 | ||
| R909921930 | PISTON | 2 | ||
| R909445056 | SETSCREW | 2 | ||
| R909086138 | HEXAGON SCREW | 2 | ||
| R909156962 | R-RINGD | 4 | ||
| R909083071 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083065 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| 47 | R909156494 | NOZZLE | 2 |
