Assembly

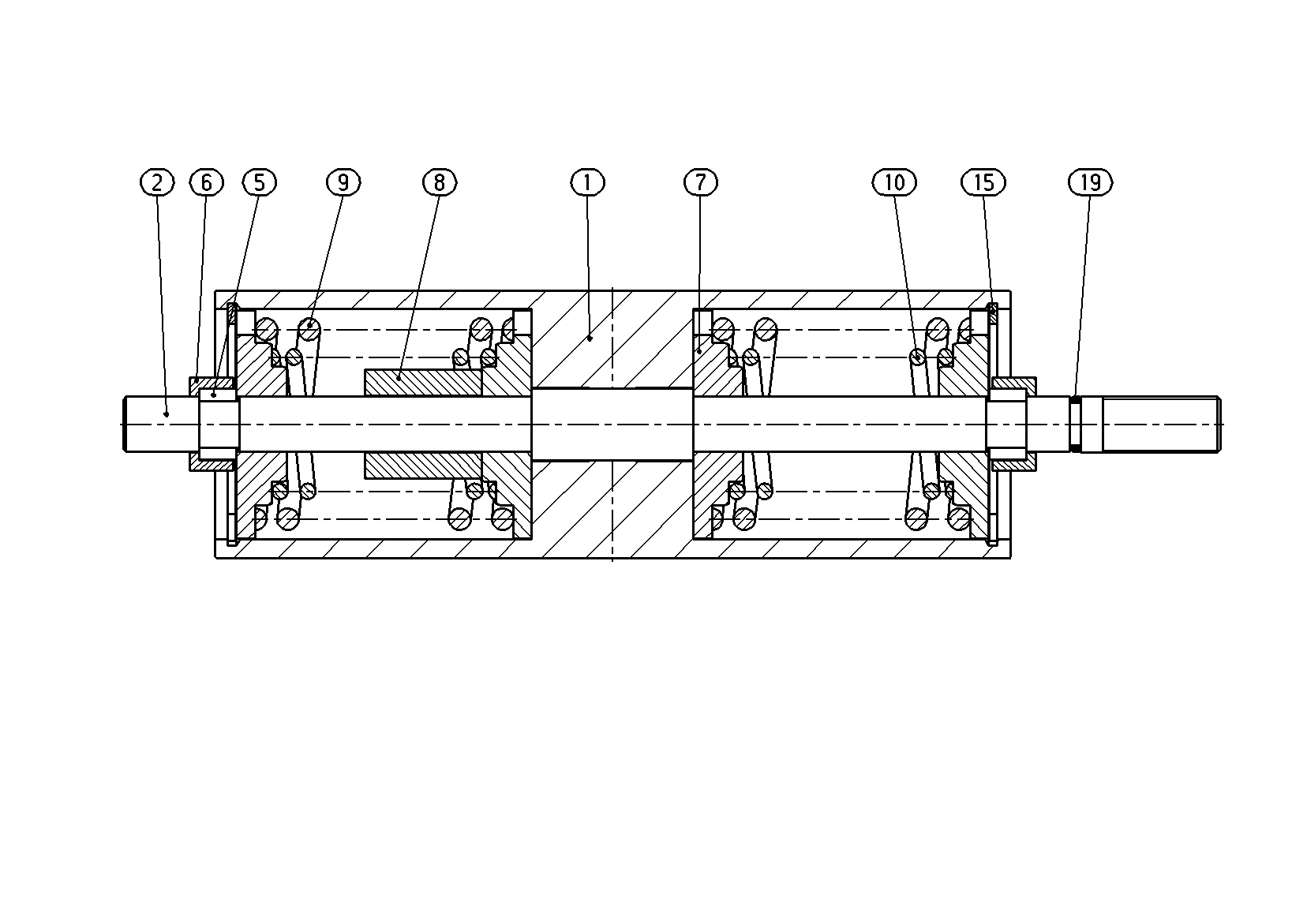

POSITIONING PISTONR902085237
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902029582 | POSITIONING PISTON | 1 | ||
| R909403558 | ROD | 1 | ||
| R909403561 | RING | 2 | ||
| R909403562 | RING | 2 | ||
| R909403563 | RING | 2 | ||
| R909403564 | RING | 2 | ||
| R909403565 | RING | 2 | ||
| R909403566 | RING | 2 | ||
| R909403567 | LOCATING RING | 2 | ||
| R909403568 | SPRING DISK | 4 | ||
| R909403569 | SPACER BUSHING | 1 | ||
| R909403570 | SPACER BUSHING | 1 | ||
| R909403571 | SPACER BUSHING | 1 | ||
| R909418168 | COMPRESSION SPRING | 2 | ||
| R909403573 | COMPRESSION SPRING | 2 | ||
| R909153461 | RETAINING RING | 2 | ||
| R909083753 | O-RINGD | 1 |
