Assembly

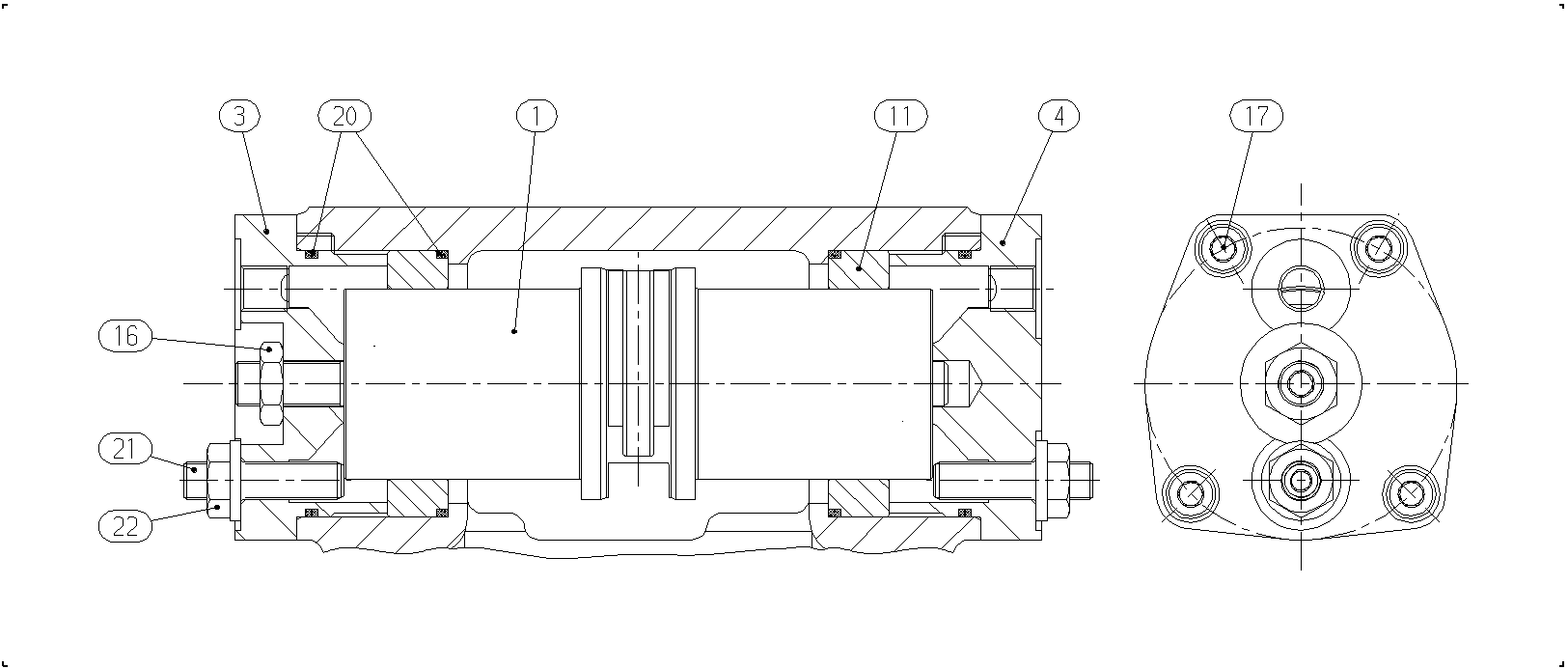

CONTROLR902085240
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902085239 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R902085248 | COVER | 1 | ||
| R902085249 | COVER | 1 | ||
| R902085247 | BUSHING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083785 | O-RINGD | 4 | ||
| R902213288 | SETSCREW | 2 | ||
| R909152426 | SEALING NUT | 2 |
