Assembly

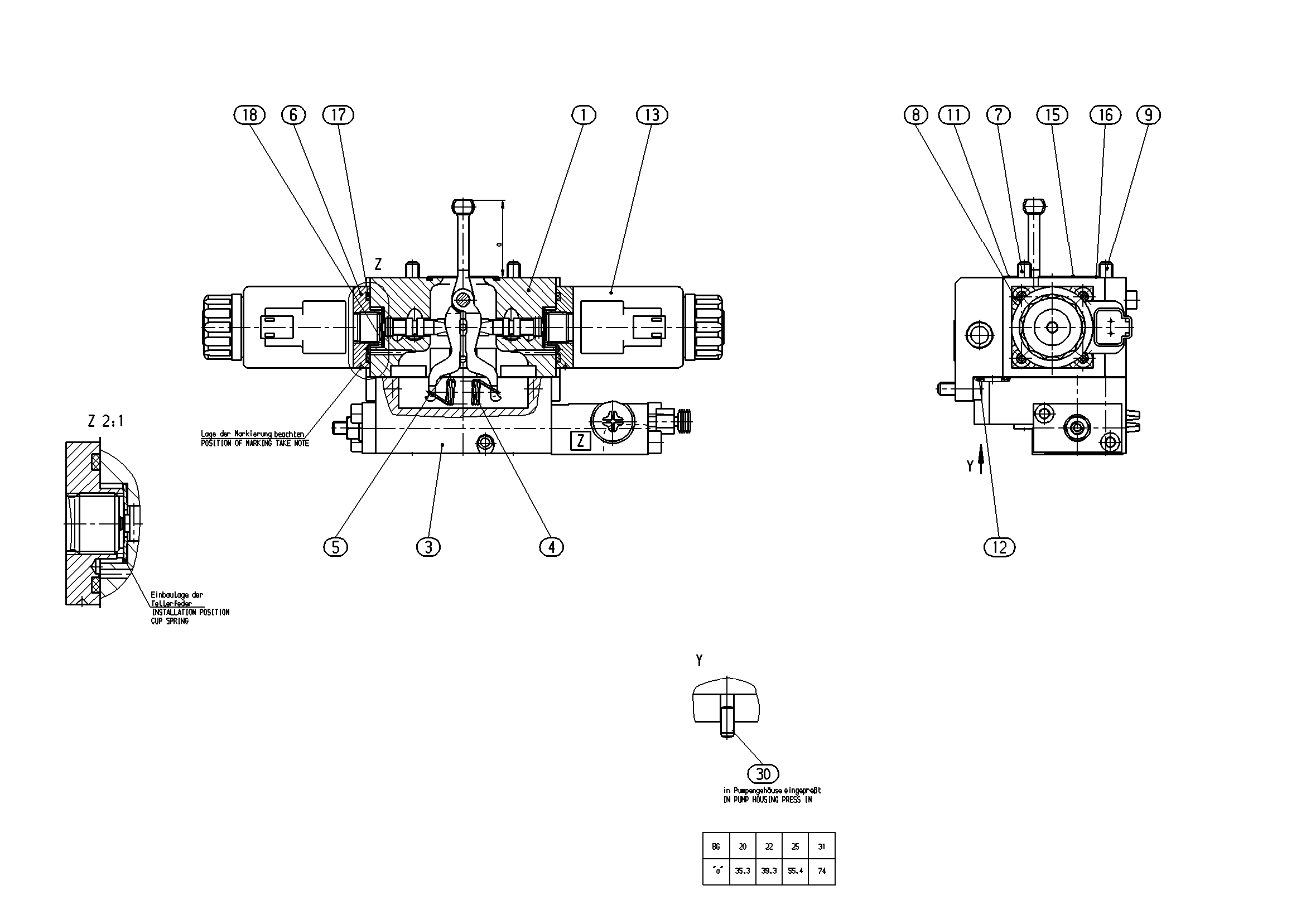

CONTROL MODULER902085769
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902085780 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902004684 | INCHING DEVICE Assembly parts list →L | 1 | ||
| R902063327 | EXTENSION SPRING | 1 | ||
| R909651478 | SEALD | 1 | ||
| R902046037 | LOCATION PIECE | 2 | ||
| R909830040 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| 9 | R909085701 | SOCKET HEAD CAP SCREW | 2 | |
| R902600641 | O-RING | 1 | ||
| R909086178 | O-RINGD | 3 | ||
| 13 | R902602657 | PROPORTIONAL SOLENOID | 1 | |
| R909086333 | O-RING | 2 | ||
| R909086380 | O-RINGD | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902601640 | DISC SPRING | 2 | ||
| R913009677 | STRAIGHT PIN | 1 |
