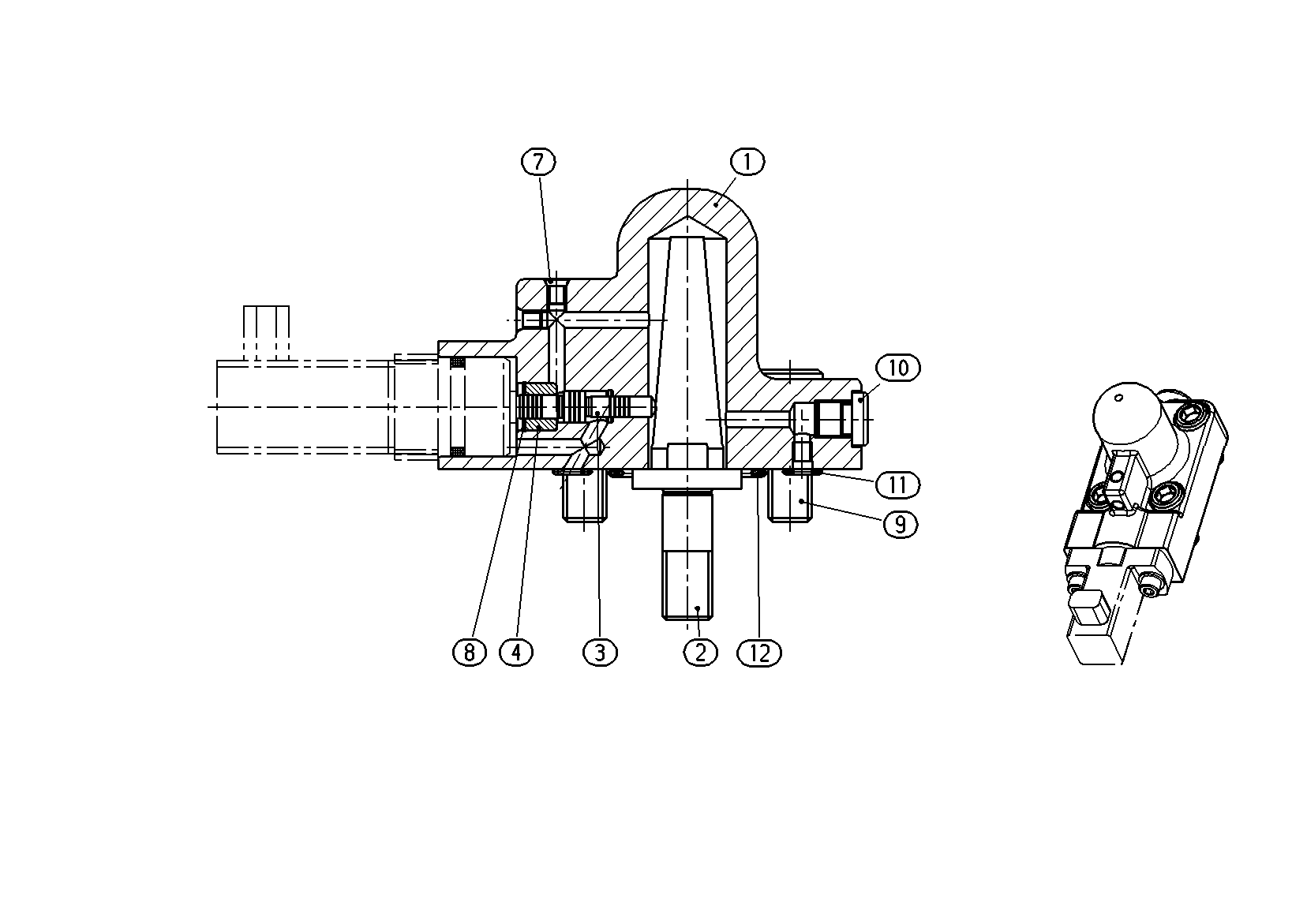

Assembly
COVERR902086633
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902086629 | COVER | 1 | |
| R902086627 | TAPERED BOLT | 1 | ||
| R902086625 | KEY PIN | 1 | ||
| R902086626 | BUSHING | 1 | ||
| 7 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909084824 | RETAINING RINGD | 1 | ||
| 9 | R909083116 | SOCKET HEAD CAP SCREW | 4 | |
| R909151692 | SCREW PLUGD | 1 | ||
| 11 | R902600655 | O-RING | 2 | |
| R909150107 | O-RING | 1 |
