Assembly

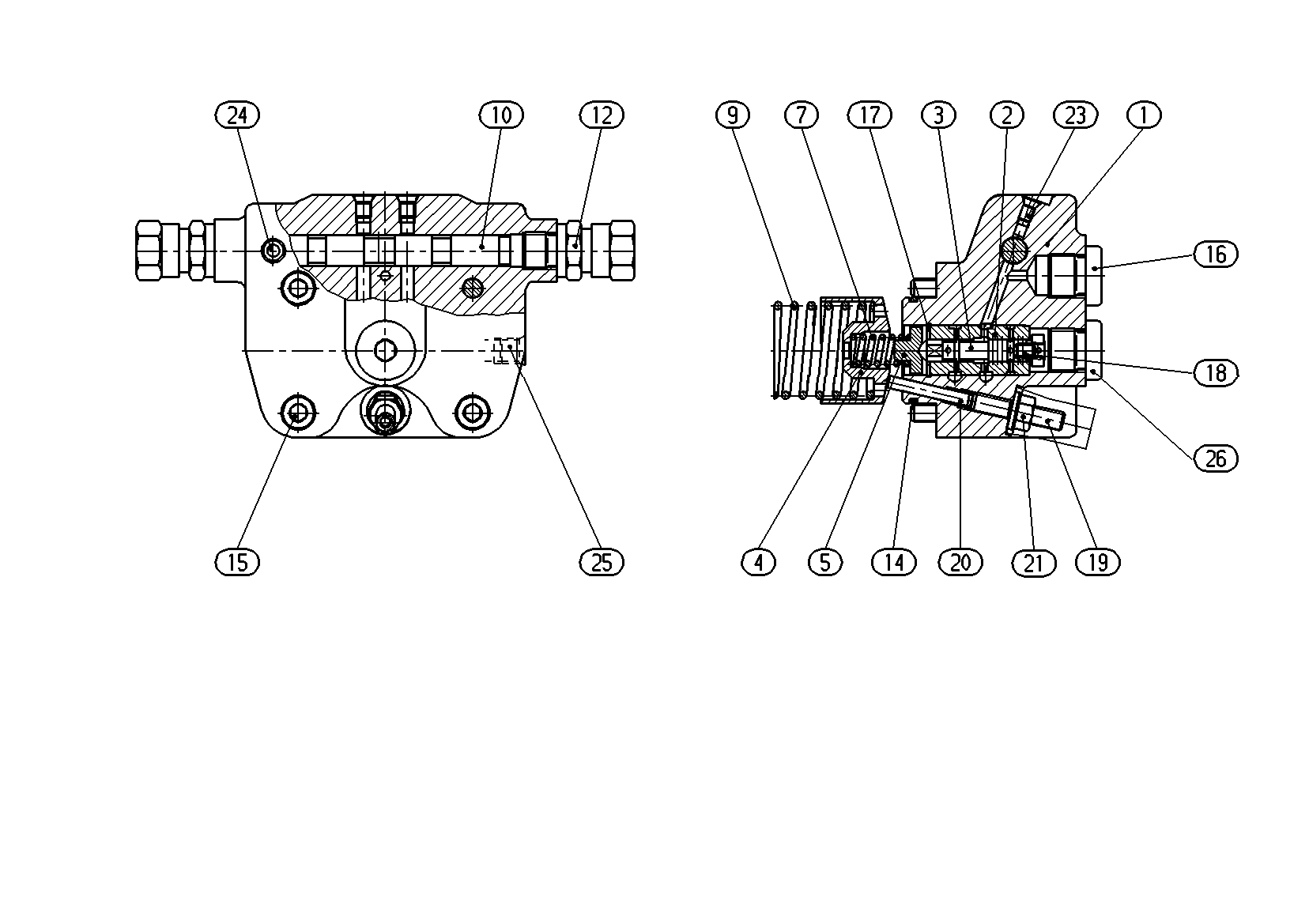

CONTROL PARTR902086658
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902086653 | CONTROL HOUSING | 1 | ||
| R909424258 | CONTROL SLEEVE | 1 | ||
| R909921245 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| 5 | R909921339 | SPRING DISK | 1 | |
| R909921419 | COMPRESSION SPRING | 1 | ||
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| R909435792 | SLIDE | 1 | ||
| R902090360 | THREADED REDUCING STUD Assembly parts list →L | 2 | ||
| R909157562 | O-RINGD | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| 25 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R913044793 | SCREW PLUG | 1 |
