Assembly

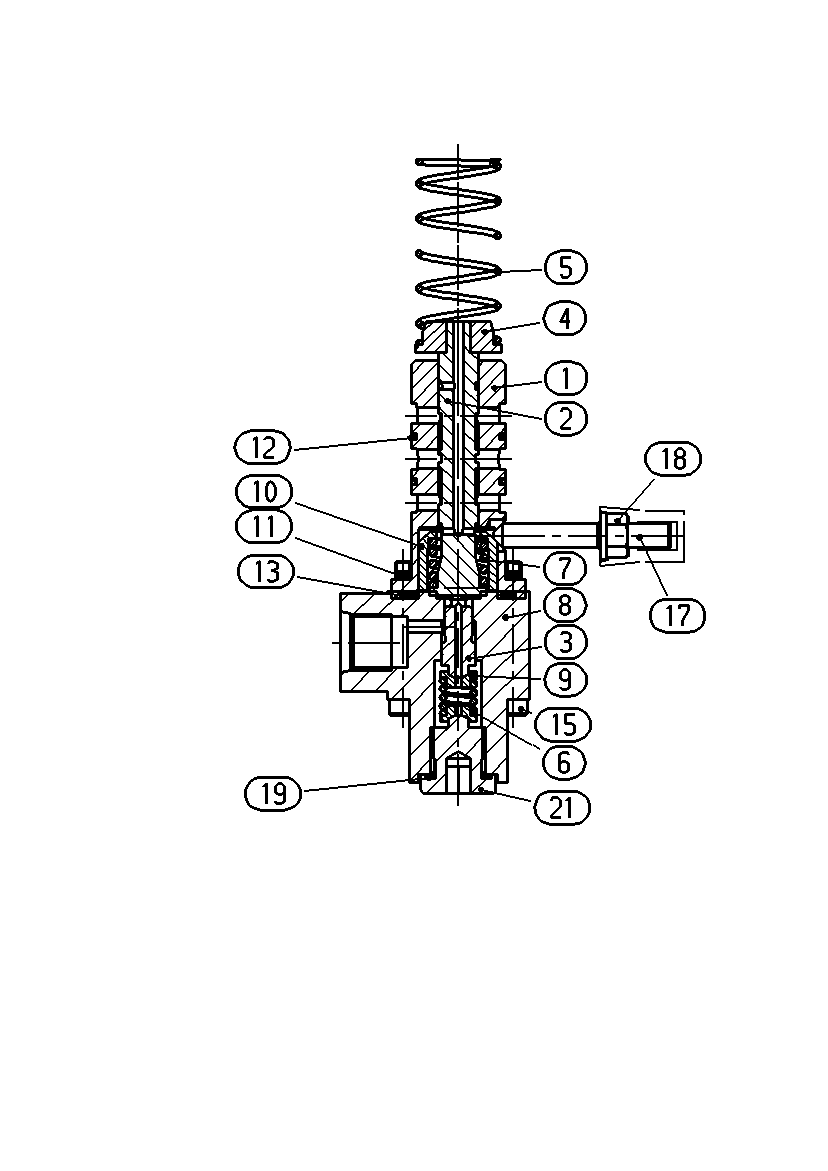

CONTROL ELEMENTR902087074
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902066811 | CONTROL SLEEVE | 1 | ||
| R902105206 | CONTROL PISTON | 1 | ||
| R902076937 | DIFFERENTIAL PISTON | 1 | ||
| R909443179 | SPRING DISK | 1 | ||
| R909443392 | COMPRESSION SPRING | 1 | ||
| R902076628 | COMPRESSION SPRING | 1 | ||
| R909449773 | COMPRESSION SPRING | 1 | ||
| R902087076 | CONNECTING PIECE | 1 | ||
| 9 | R902107273 | SPRING DISK | 2 | |
| R902005735 | ADJUSTING BUSHINGD | 1 | ||
| 11 | R909083763 | O-RING | 1 | |
| R902601678 | STEEL SEALING RINGD | 2 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083007 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909153284 | SETSCREW | 1 | |
| R909152425 | SEALING NUT | 1 | ||
| R900012467 | SEAL RING | 1 | ||
| 21 | R902122151 | SCREW PLUG | 1 |
