Assembly

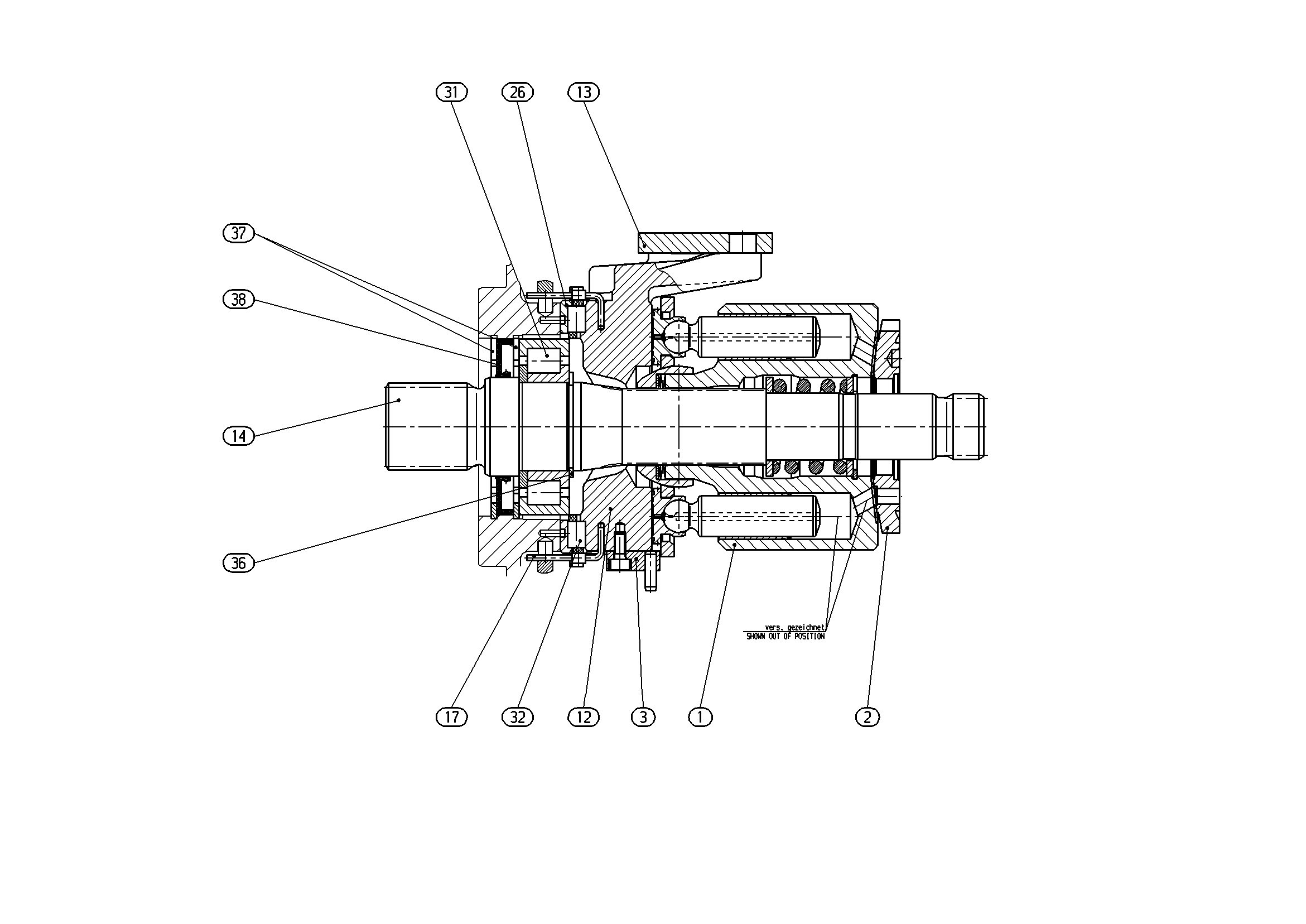

ROTARY GROUPR902087307
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902079247 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902087281 | CONTROL PLATE, RIGHT-HAND ROTATION | 1 | ||
| R902050498 | PEN HOLDER Assembly parts list →L | 1 | ||
| R902051203 | CRADLE | 1 | ||
| R909449810 | SLIDER | 1 | ||
| R909921938 | DRIVE SHAFT | 1 | ||
| R909076233 | WIRE | 2 | ||
| R902066586 | BEARING SHELL PAIR | 1 | ||
| R909153104 | CYL. ROLLER BEARING | 1 | ||
| R909830152 | CAGE PAIR | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R902600001 | RETAINING RING | 2 | ||
| R902601794 | ROTARY SHAFT LIP SEALD | 1 | ||
| 98 | R902002389 | SEAL KIT | 1 |
