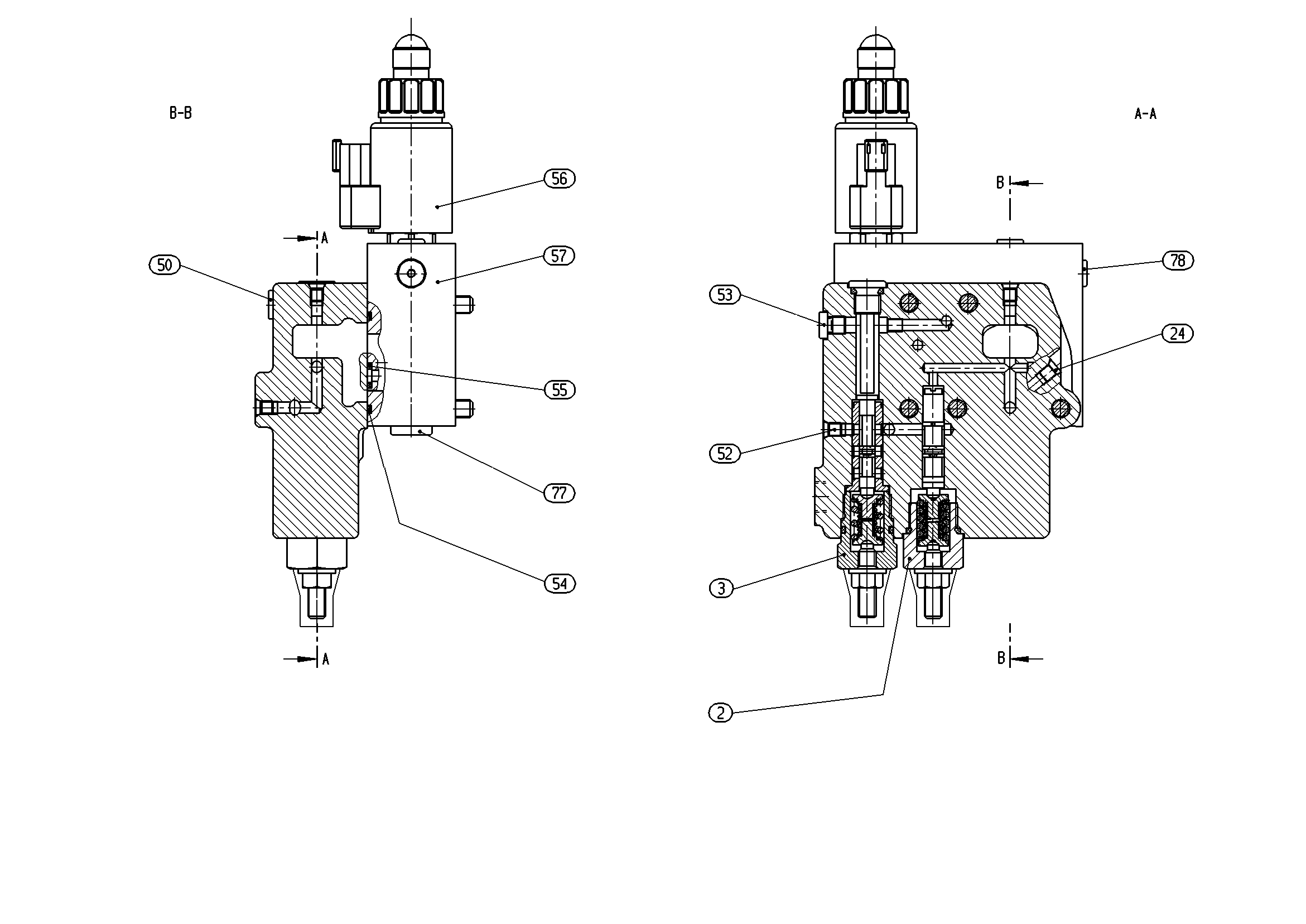

Assembly
REGULATORR902087812
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902032072 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902087803 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| 10 | R909651089 | CONTROL HOUSING | 1 | |
| R909445306 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902602893 | SOCKET HEAD CAP SCREW | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909150107 | O-RINGD | 1 | ||
| R902602890 | R-RINGD | 3 | ||
| R901036378 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R902123608 | INTERMEDIATE PLATE | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| 98 | R902002461 | SEAL KITD | 1 |
