Assembly

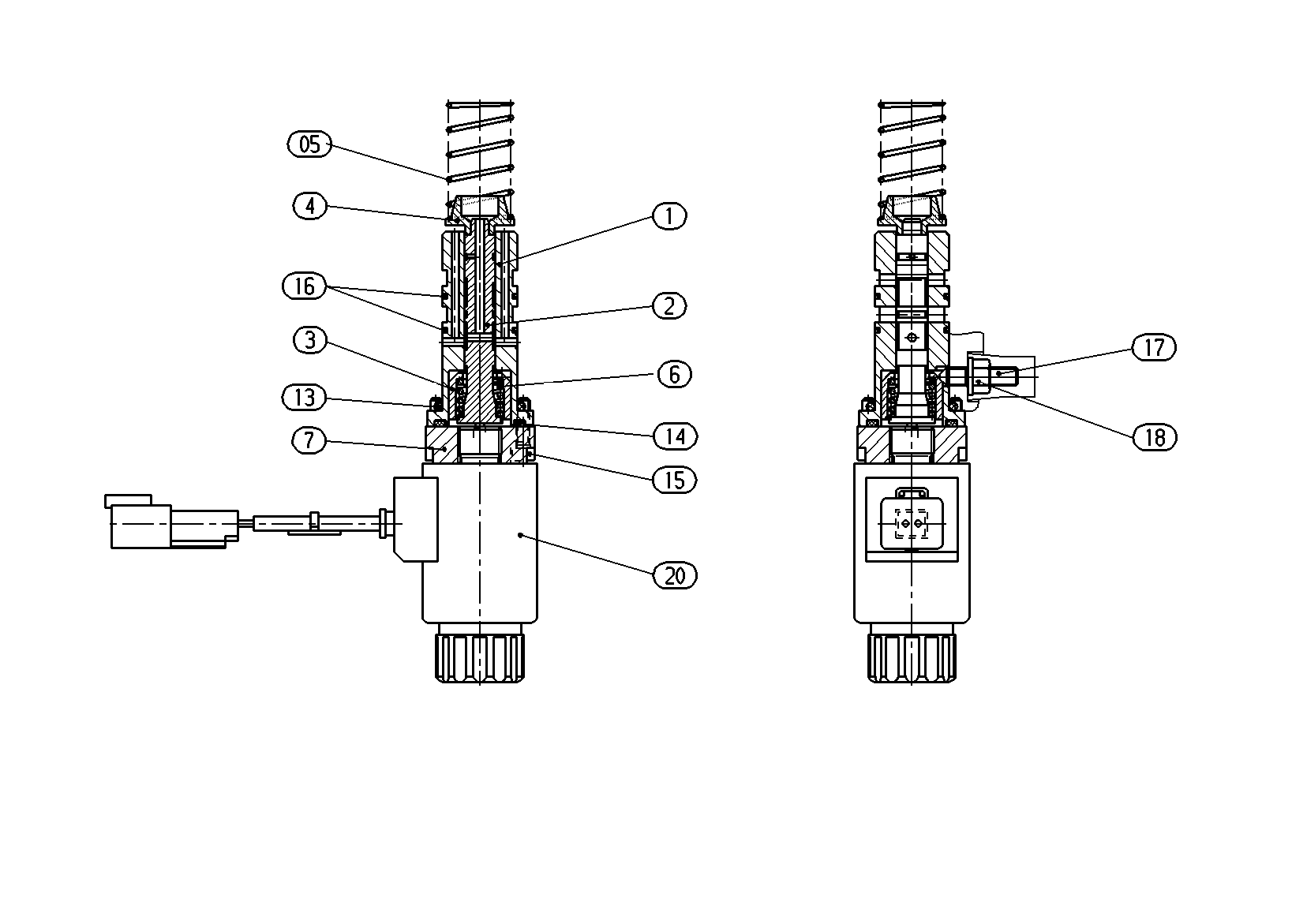

CONTROL ELEMENTR902087942
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902064447 | CONTROL SLEEVE | 1 | |
| R902105207 | CONTROL PISTON | 1 | ||
| R902005735 | ADJUSTING BUSHING | 1 | ||
| 4 | R909443280 | SPRING DISK | 1 | |
| 5 | R909440876 | COMPRESSION SPRING | 1 | |
| R909449773 | COMPRESSION SPRING | 1 | ||
| R902055741 | INTERMEDIATE PIECE | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083761 | O-RING | 1 | ||
| R909083004 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601678 | STEEL SEALING RING | 2 | ||
| 17 | R909153284 | SETSCREW | 1 | |
| 18 | R909152425 | SEALING NUT | 1 | |
| R902603429 | PROPORTIONAL SOLENOID | 1 |
