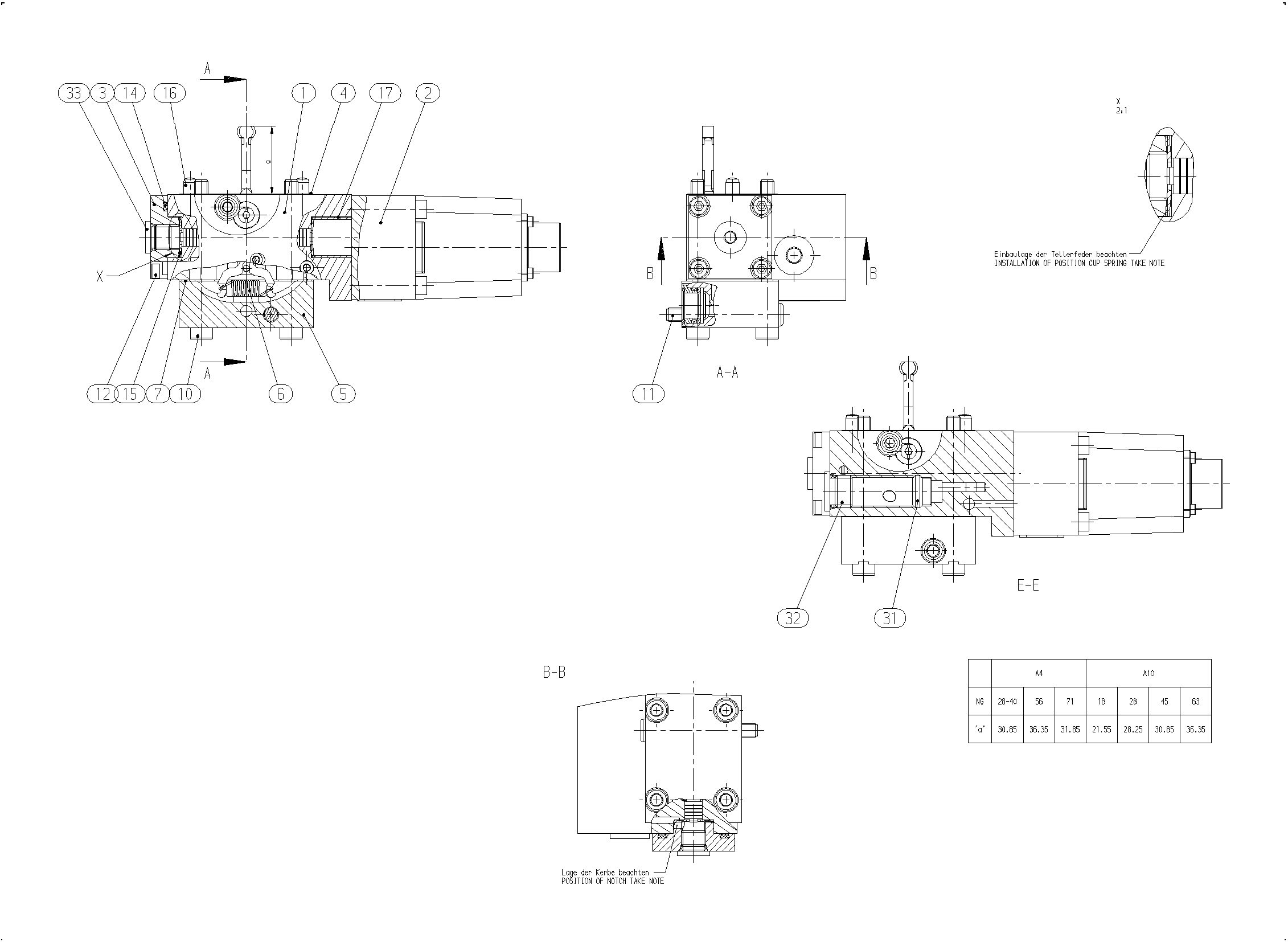

Assembly
CONTROL MODULER902088327
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902089842 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R902602763 | SERVO VALVE | 1 | ||
| R902105252 | LOCATION PIECE | 1 | ||
| R902603829 | SEALD | 1 | ||
| R902107492 | COVER | 1 | ||
| R902105125 | EXTENSION SPRING | 1 | ||
| R902603830 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083764 | O-RING | 2 | ||
| — | DISC SPRINGD | 2 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R902094430 | SPACER SLEEVE | 1 | ||
| R902602762 | FILTER | 1 | ||
| R909153371 | SCREW PLUG | 1 | ||
| R910764647 | SCREW PLUG | 1 |
