Assembly

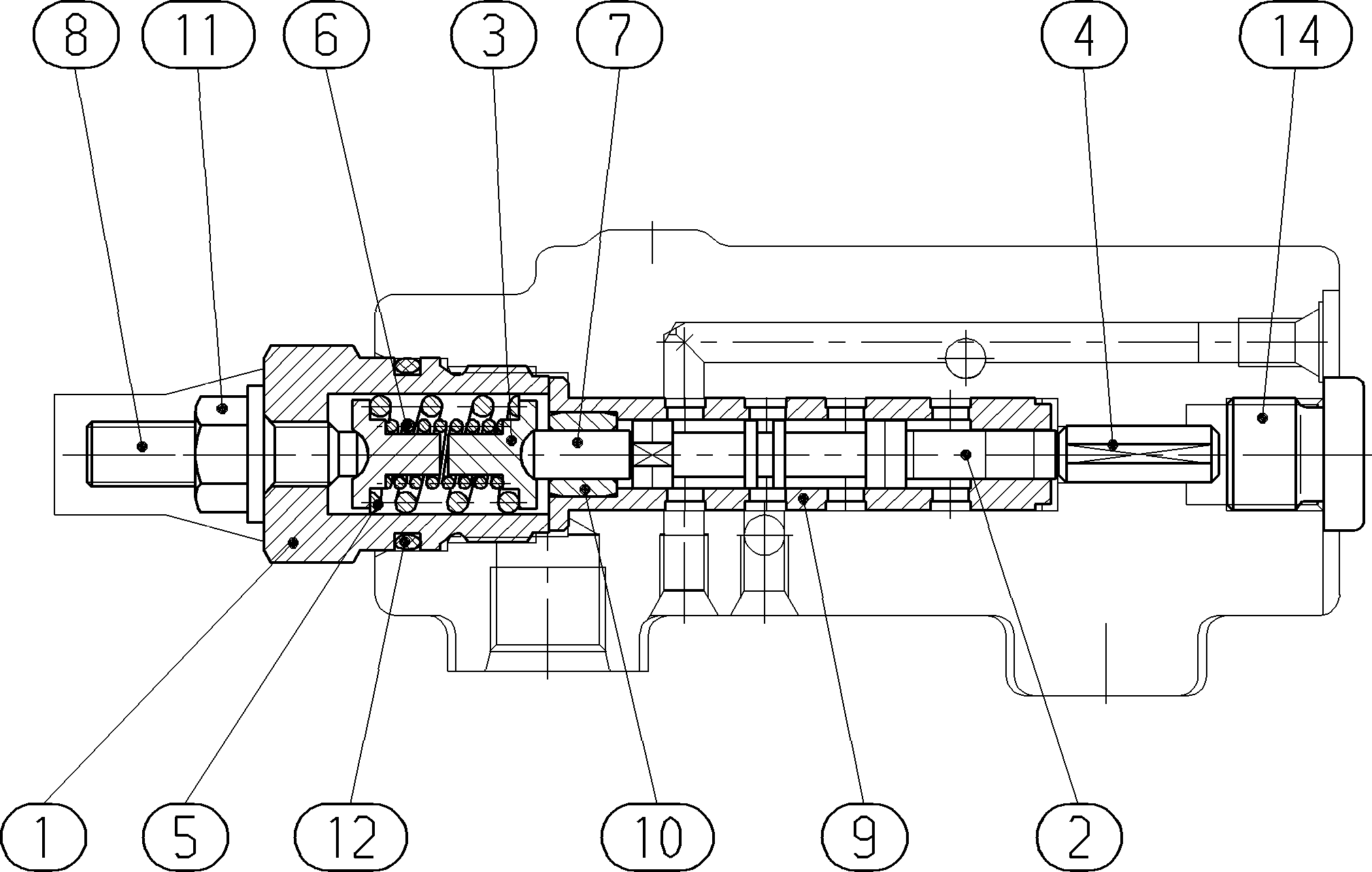

CONTROL ELEMENTR902088353
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902033700 | SCREW PLUG | 1 | ||
| R902059023 | CONTROL PISTON | 1 | ||
| R909436839 | SPRING BOLT | 2 | ||
| R902046431 | CONTROL PISTON | 1 | ||
| R909436394 | COMPRESSION SPRING | 1 | ||
| R902017140 | COMPRESSION SPRING | 1 | ||
| R902059025 | PISTON | 1 | ||
| R909444953 | SETSCREW | 1 | ||
| R902059024 | CONTROL SLEEVE | 1 | ||
| R902059026 | BUSHING | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RING | 1 | ||
| 20 | R909151979 | SCREW PLUG | 1 |
