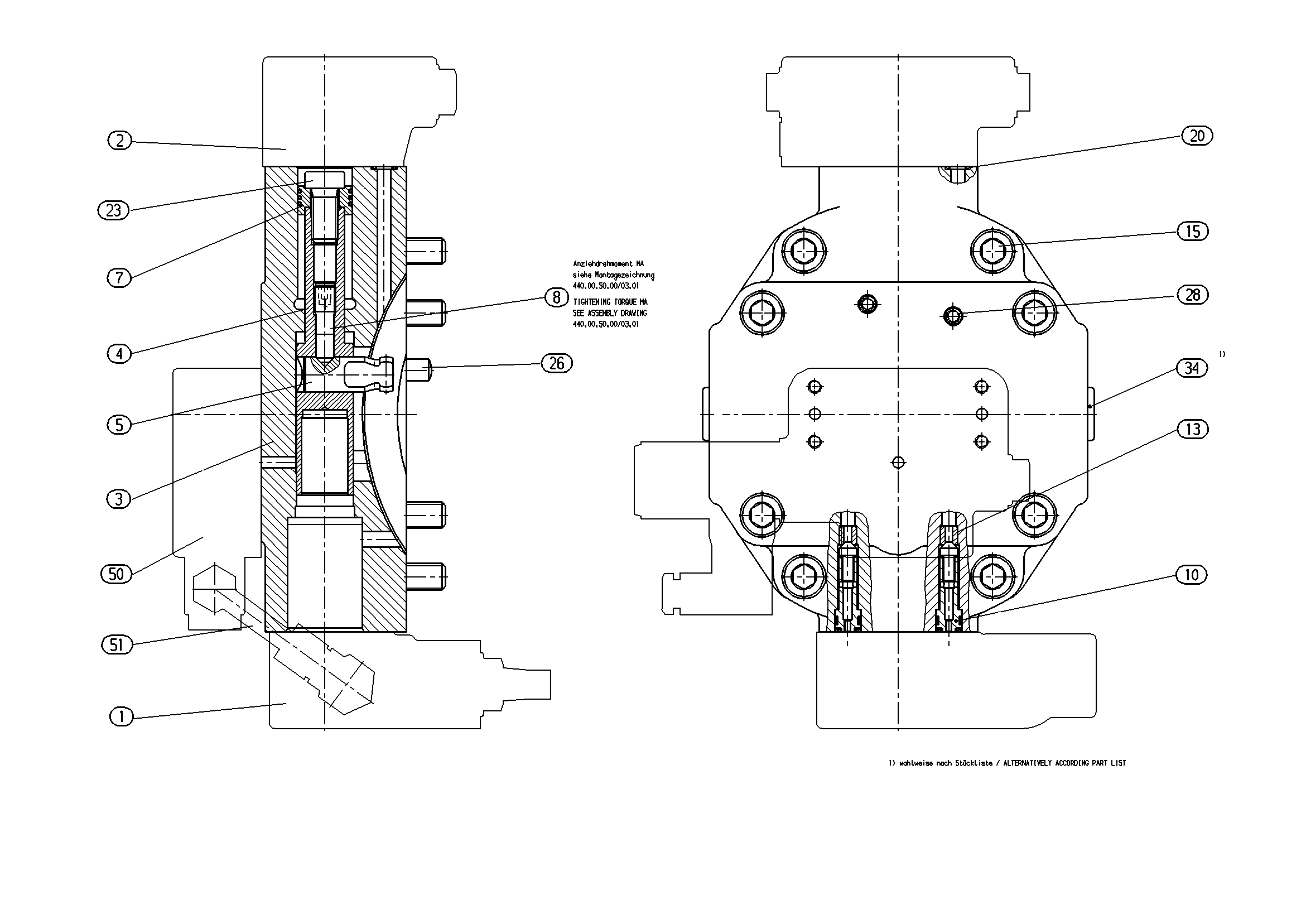

Assembly
CONTROLR902088635
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902082426 | CONTROL PART Assembly parts list →L | 1 | ||
| R909603760 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902082014 | COVER PLATE | 1 | ||
| R909921435 | POSITIONING PISTON | 1 | ||
| 5 | R909424057 | POSITIONING STUD | 1 | |
| R902102907 | PISTON | 1 | ||
| R909445016 | SETSCREW | 1 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085577 | O-RING | 6 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902100050 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 51 | R902018383 | HYDRAULIC LINE Assembly parts list →L | 1 |
