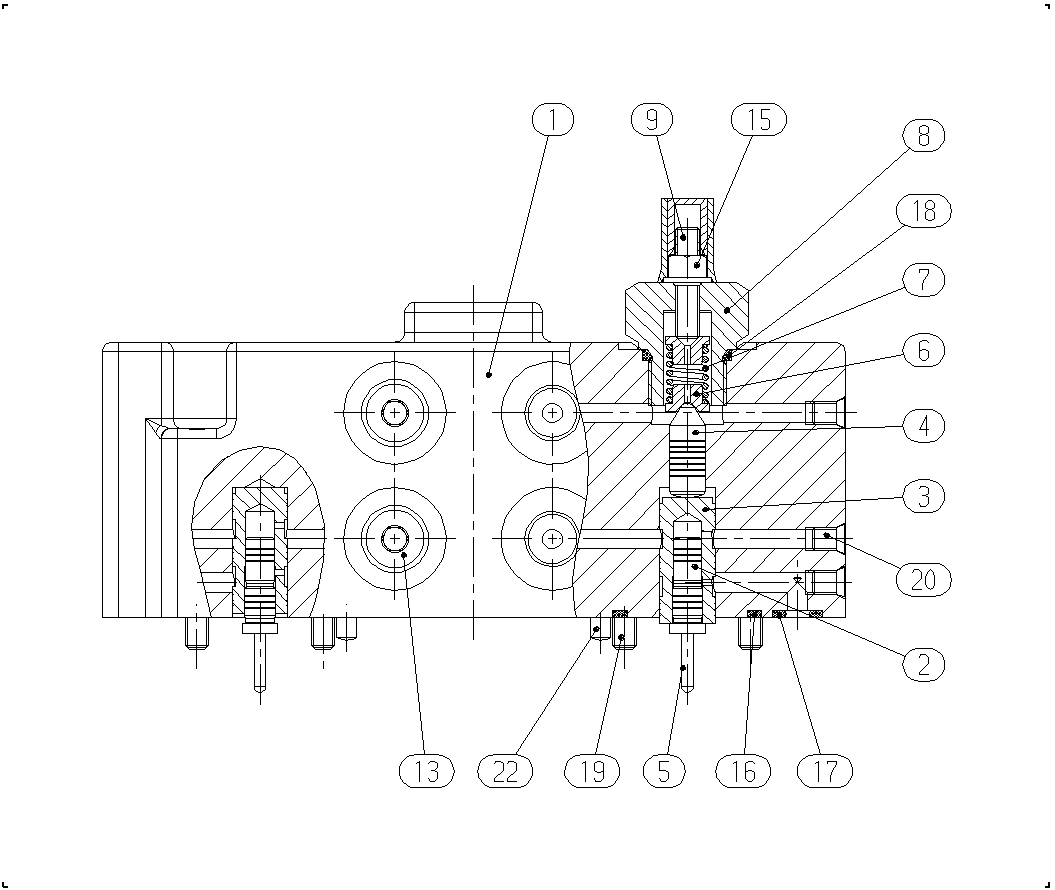

Assembly
CONTROL MODULER902090319
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902090318 | CONTROL HOUSING | 1 | |
| R909430661 | CONTROL PISTON | 2 | ||
| R909436379 | CONTROL SLEEVE | 2 | ||
| R902009638 | POSITIONING PISTON | 1 | ||
| 5 | R909431195 | PIN | 2 | |
| R909430649 | SPRING DISK | 2 | ||
| 7 | R902414138 | COMPRESSION SPRING | 1 | |
| R909436380 | SCREW PLUG | 1 | ||
| 9 | R909420991 | SETSCREW | 1 | |
| R909151692 | SCREW PLUG | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086730 | O-RINGD | 2 | ||
| R902600655 | O-RINGD | 2 | ||
| R909083757 | O-RINGD | 1 | ||
| 19 | R909083028 | SOCKET HEAD CAP SCREW | 6 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| 22 | R909084149 | STRAIGHT PIN | 2 |
