Assembly

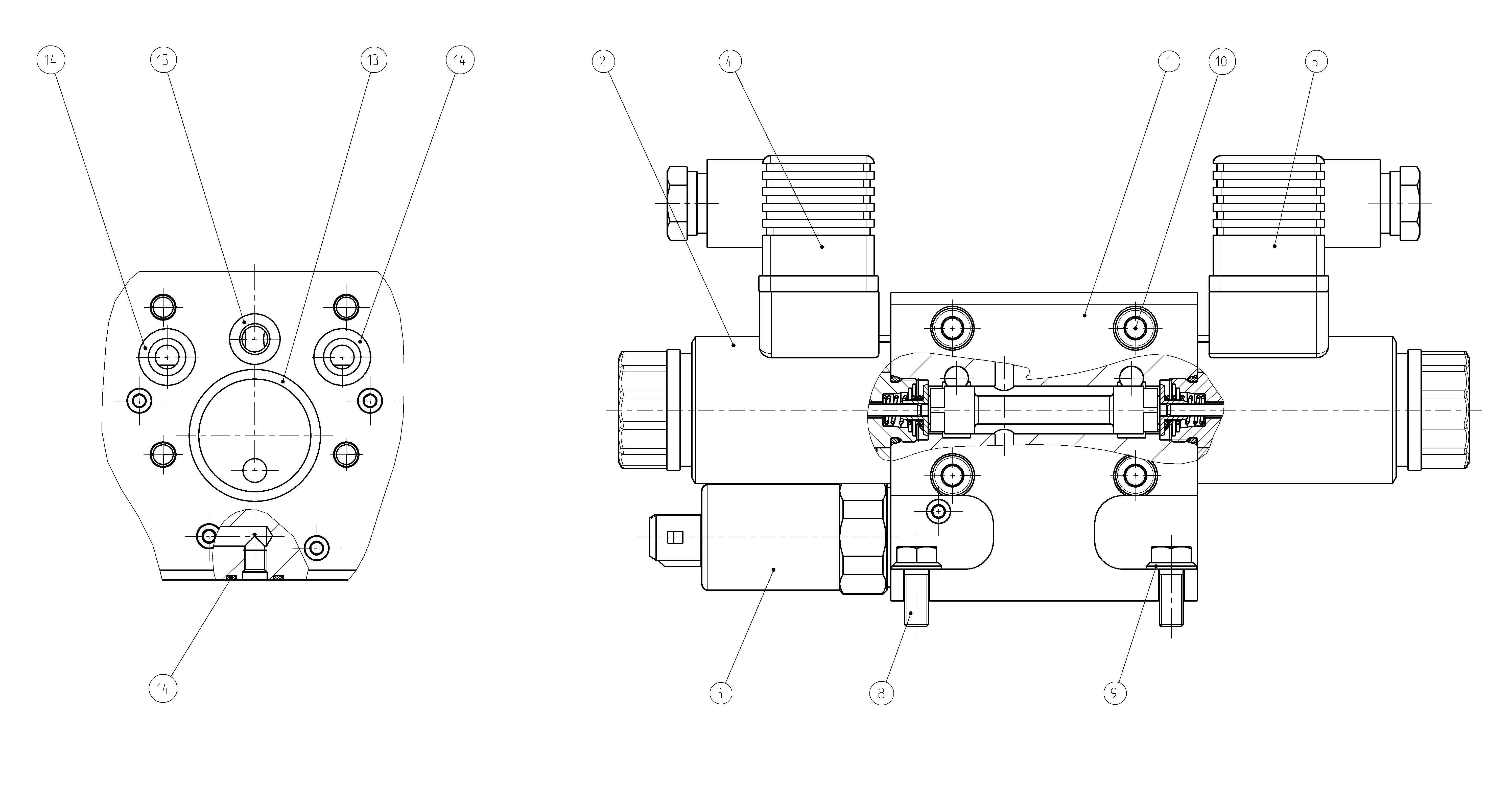

DIRECTIONAL-CONTROL VALVER902094056
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902094055 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902602669 | SWITCHING SOLENOID | 2 | ||
| R901155050 | PRESSURE REDUCING VALVE | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R909083686 | HEXAGON SCREW | 2 | ||
| R913000805 | WASHER | 2 | ||
| R909083030 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600641 | O-RING | 1 | ||
| R909086332 | O-RING | 3 | ||
| R909085709 | O-RING | 1 |
