Assembly

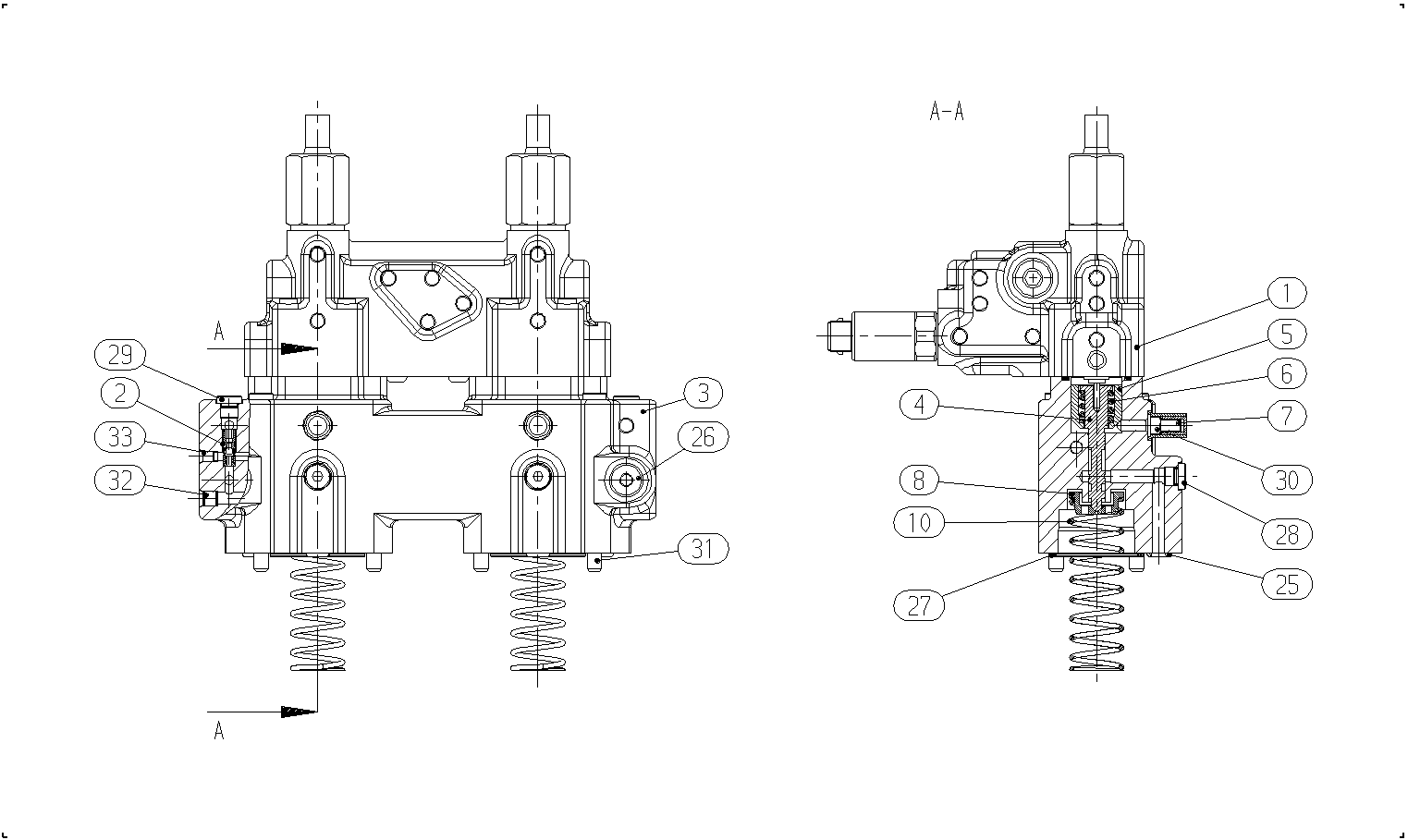

CONTROL MODULER902094605
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902090440 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902070561 | SHUTTLE VALVE Assembly parts list →L | 2 | ||
| R902094608 | CONTROL HOUSING | 1 | ||
| R909449944 | CONTROL PISTON | 2 | ||
| R909449344 | SPRING BUSH | 2 | ||
| R909651102 | COMPRESSION SPRING | 2 | ||
| R909425219 | SETSCREW | 2 | ||
| R902094546 | SPRING DISK | 2 | ||
| R902090017 | COMPRESSION SPRING | 2 | ||
| R902600644 | O-RINGD | 4 | ||
| R902601850 | SCREW PLUG | 2 | ||
| R909152687 | O-RINGD | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909083052 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
