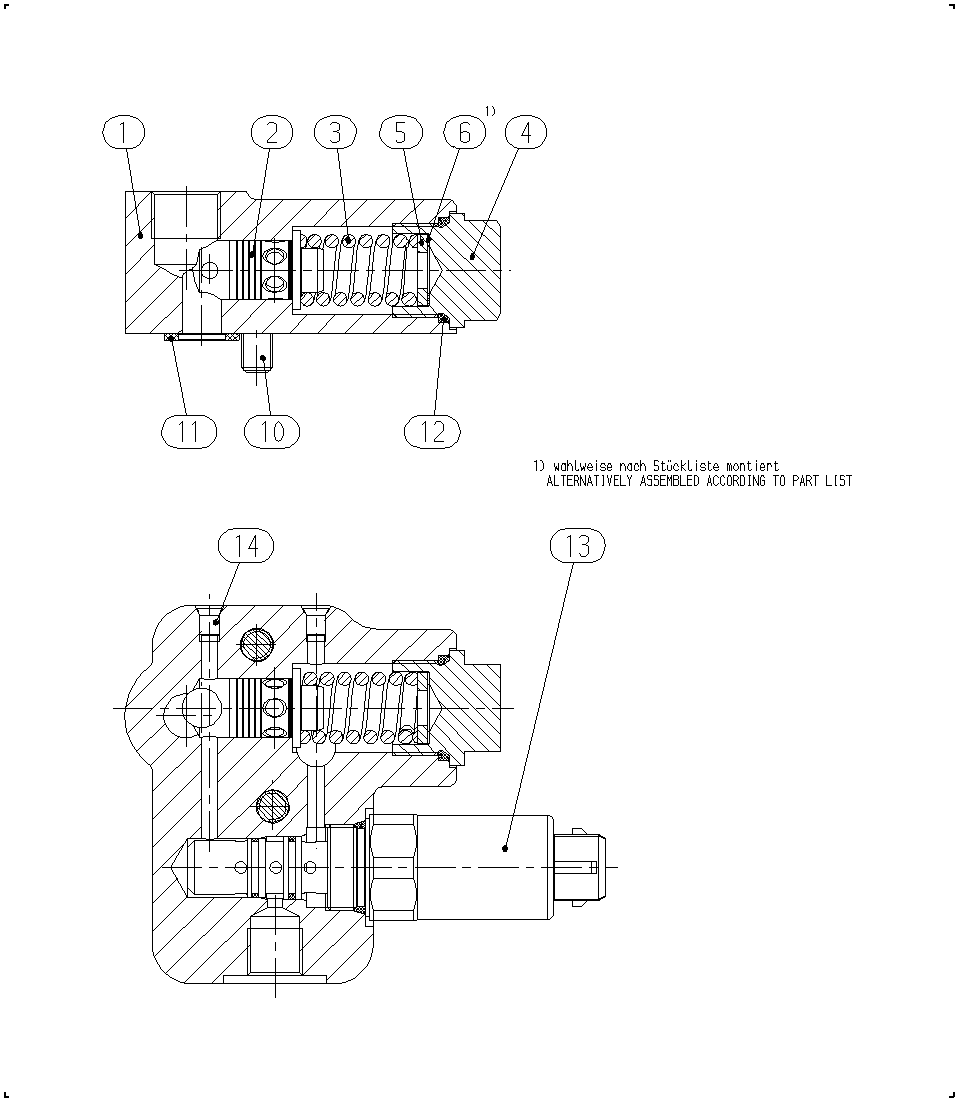

Assembly
CONNECTION PLATER902094808
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902162190 | CONNECTION PLATE | 1 | ||
| R909426804 | VALVE SPOOL | 1 | ||
| R902030583 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R909080511 | WASHER | 1 | ||
| R909083041 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083753 | O-RING | 2 | ||
| R909083760 | O-RING | 1 | ||
| R901155051 | PRESSURE REDUCING VALVE | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 |
