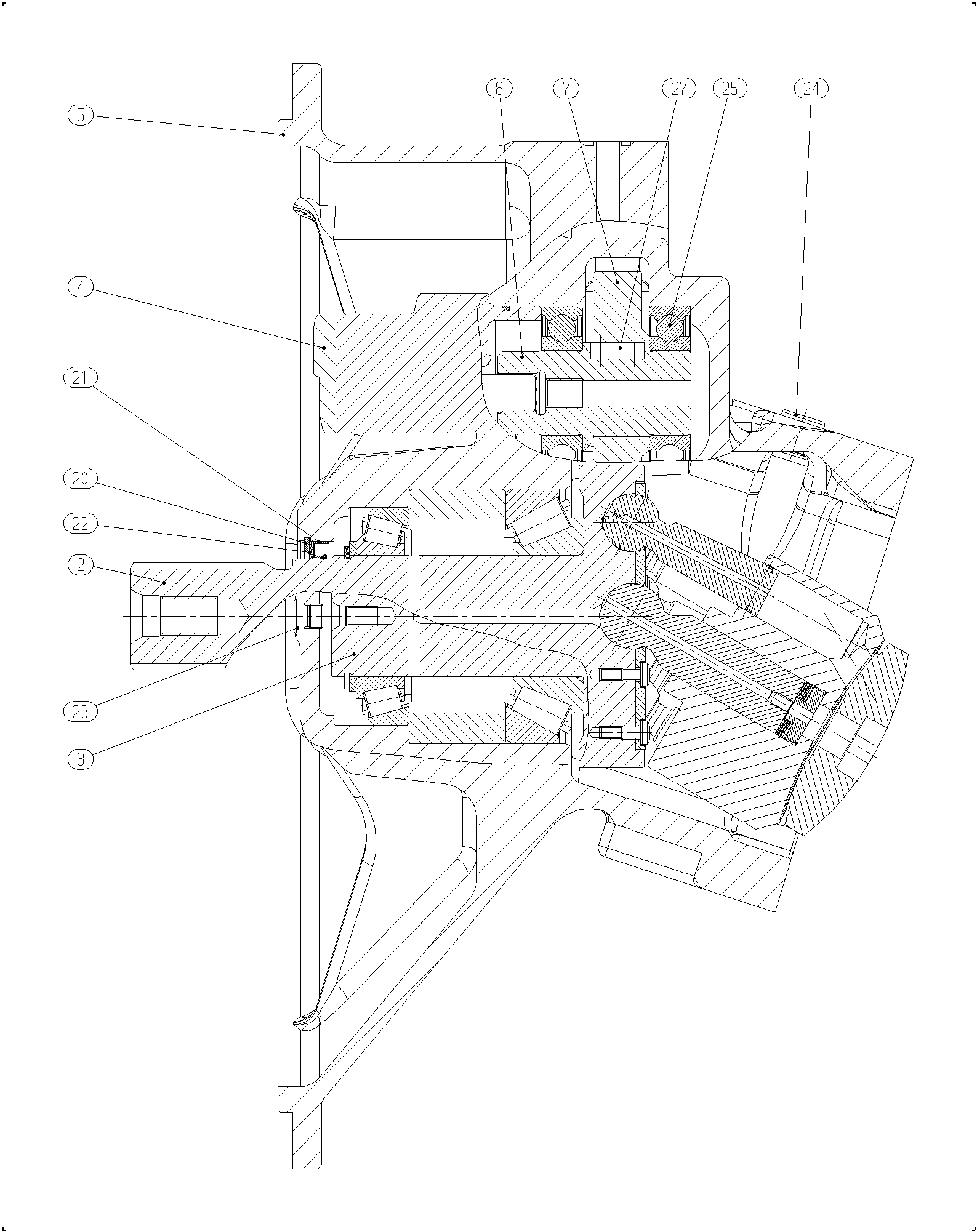

Assembly
AXIAL-PISTON PUMPR902094957
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902094906 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902094908 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902602848 | HYDRAULIC GEAR PUMP | 1 | ||
| R902094952 | PUMP HOUSING | 1 | ||
| R902088974 | TOOTHED WHEEL | 1 | ||
| R902088973 | PLUG-IN SHAFT | 1 | ||
| R909083408 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| R909150998 | SHIM RING | 1 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R902601850 | SCREW PLUGD | 3 | ||
| R909085462 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909157352 | PARALLEL KEY | 1 |
