Assembly

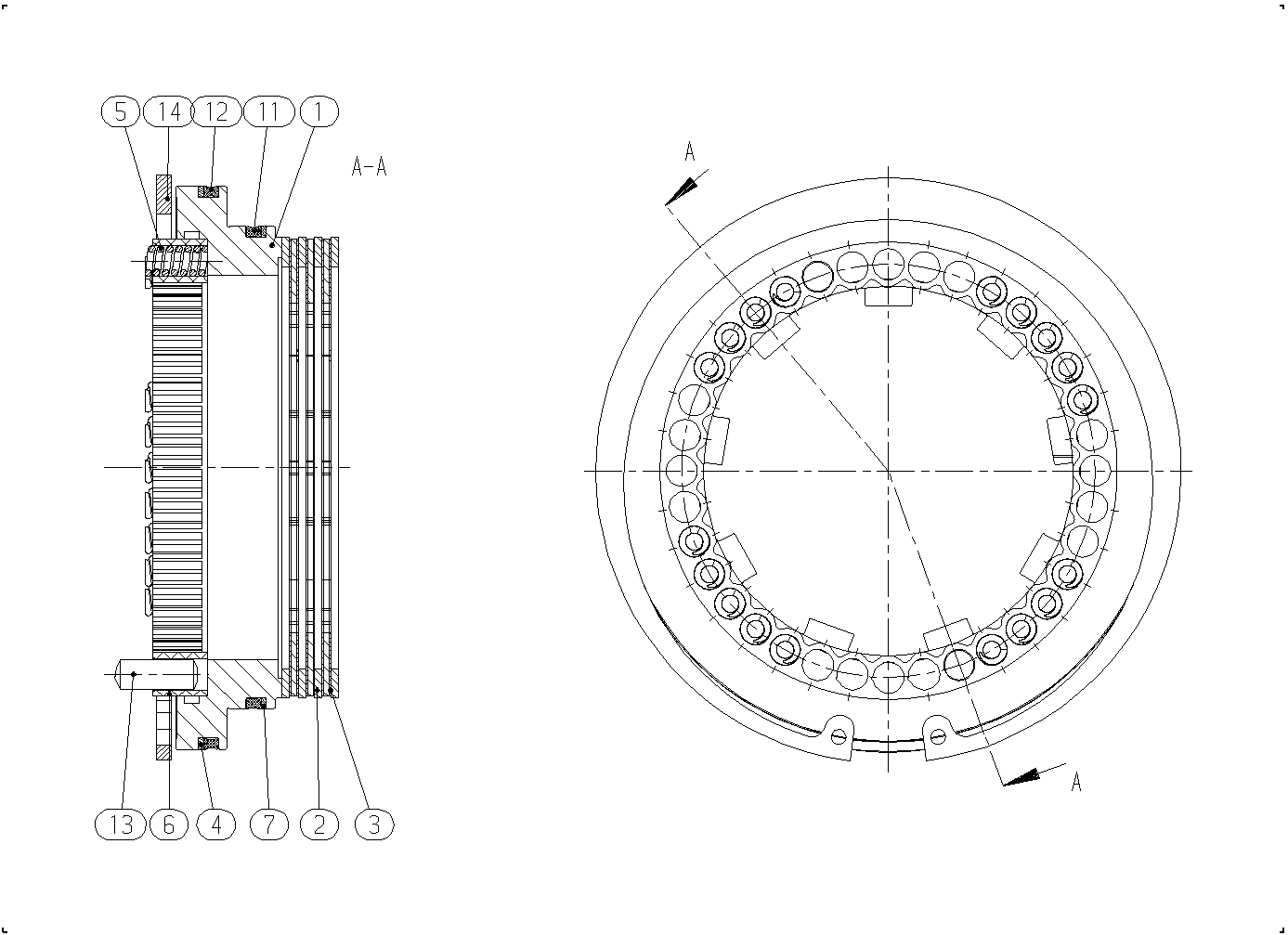

THRUST RINGR902095003
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902035844 | THRUST RING | 1 | ||
| R902049736 | DISC | 3 | ||
| R902013396 | COUNTER DISC | 4 | ||
| R902025772 | BACKUP RING | 1 | ||
| R902039894 | COMPRESSION SPRING | 18 | ||
| R902029529 | GUIDE RING | 1 | ||
| R902025773 | BACKUP RING | 1 | ||
| R913025844 | QUAD RING | 1 | ||
| R913025845 | QUAD RING | 1 | ||
| R913016987 | STRAIGHT PIN | 2 | ||
| R909153324 | RETAINING RING | 1 |
