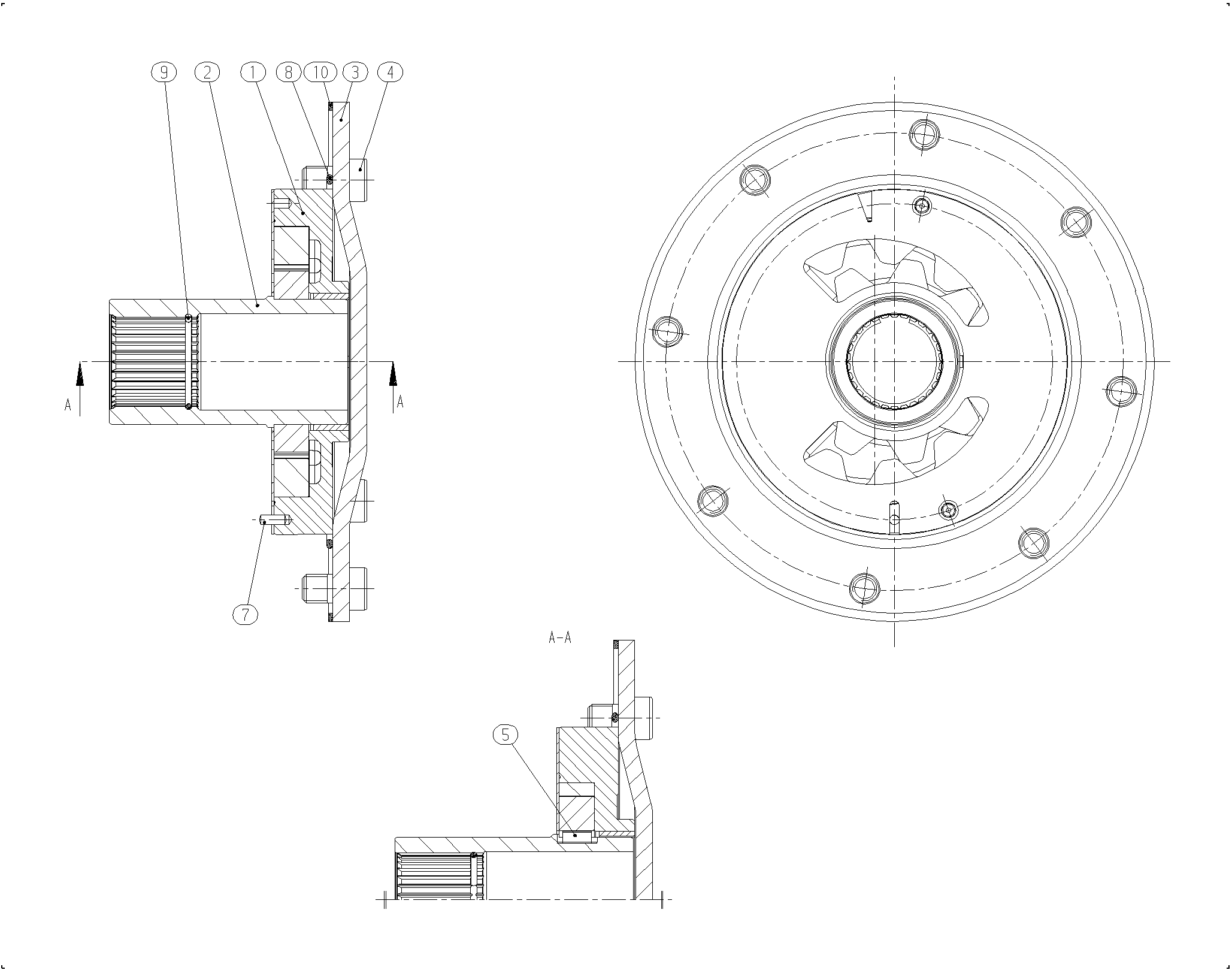

Assembly
INTERNAL GEAR PUMPR902095231
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902095233 | HOUSING Assembly parts list →L | 1 | ||
| R902095329 | PLUG-IN SHAFT | 1 | ||
| R902085495 | COVER | 1 | ||
| R909083203 | SOCKET HEAD CAP SCREW | 8 | ||
| R902095236 | PARALLEL KEY | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902603025 | O-RINGD | 1 | ||
| R909830236 | SNAP RING | 1 | ||
| R902602987 | KANTSEALD | 1 |
