Assembly

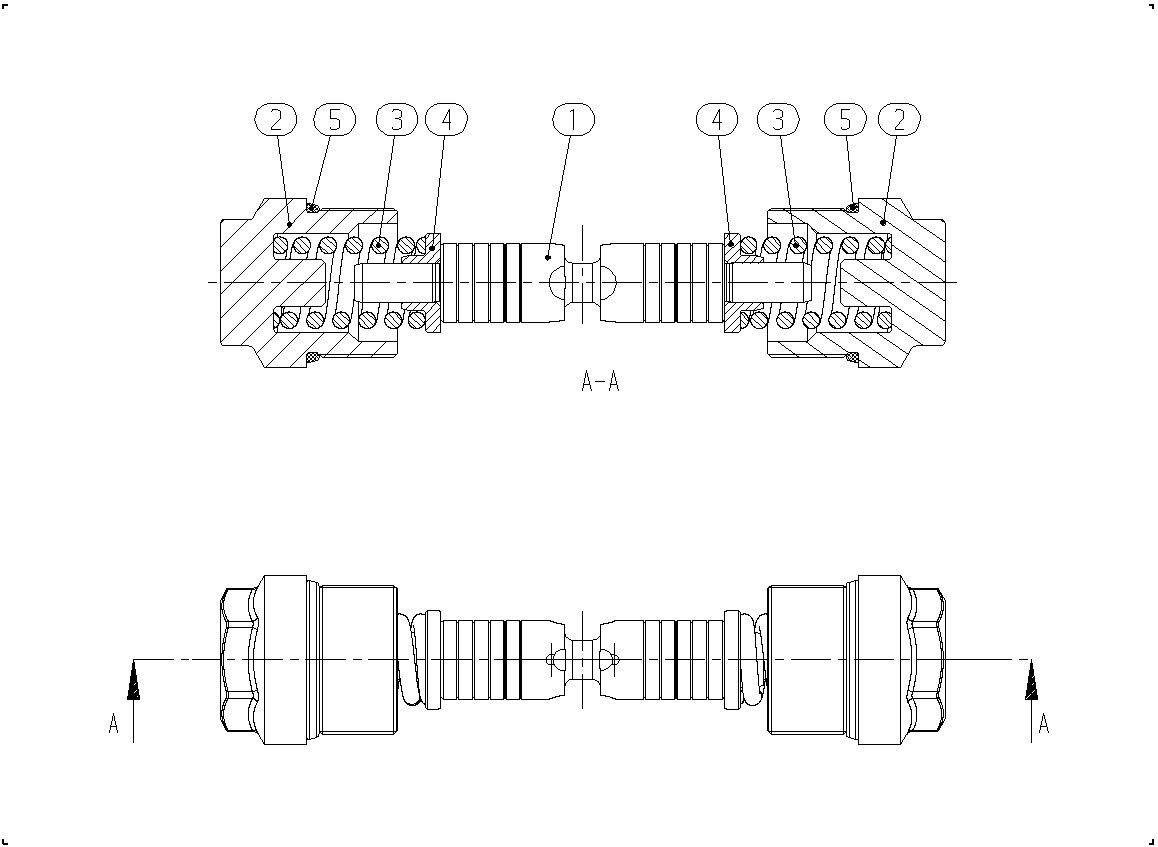

BRAKE VALVER902095370
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902400534 | PISTON | 1 | |
| R902404150 | SCREW PLUG | 2 | ||
| R902600308 | COMPRESSION SPRING | 2 | ||
| R902025910 | SPRING DISK | 2 | ||
| R909831230 | O-RINGD | 2 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902400534 | PISTON | 1 | |
| R902404150 | SCREW PLUG | 2 | ||
| R902600308 | COMPRESSION SPRING | 2 | ||
| R902025910 | SPRING DISK | 2 | ||
| R909831230 | O-RINGD | 2 |
