Assembly

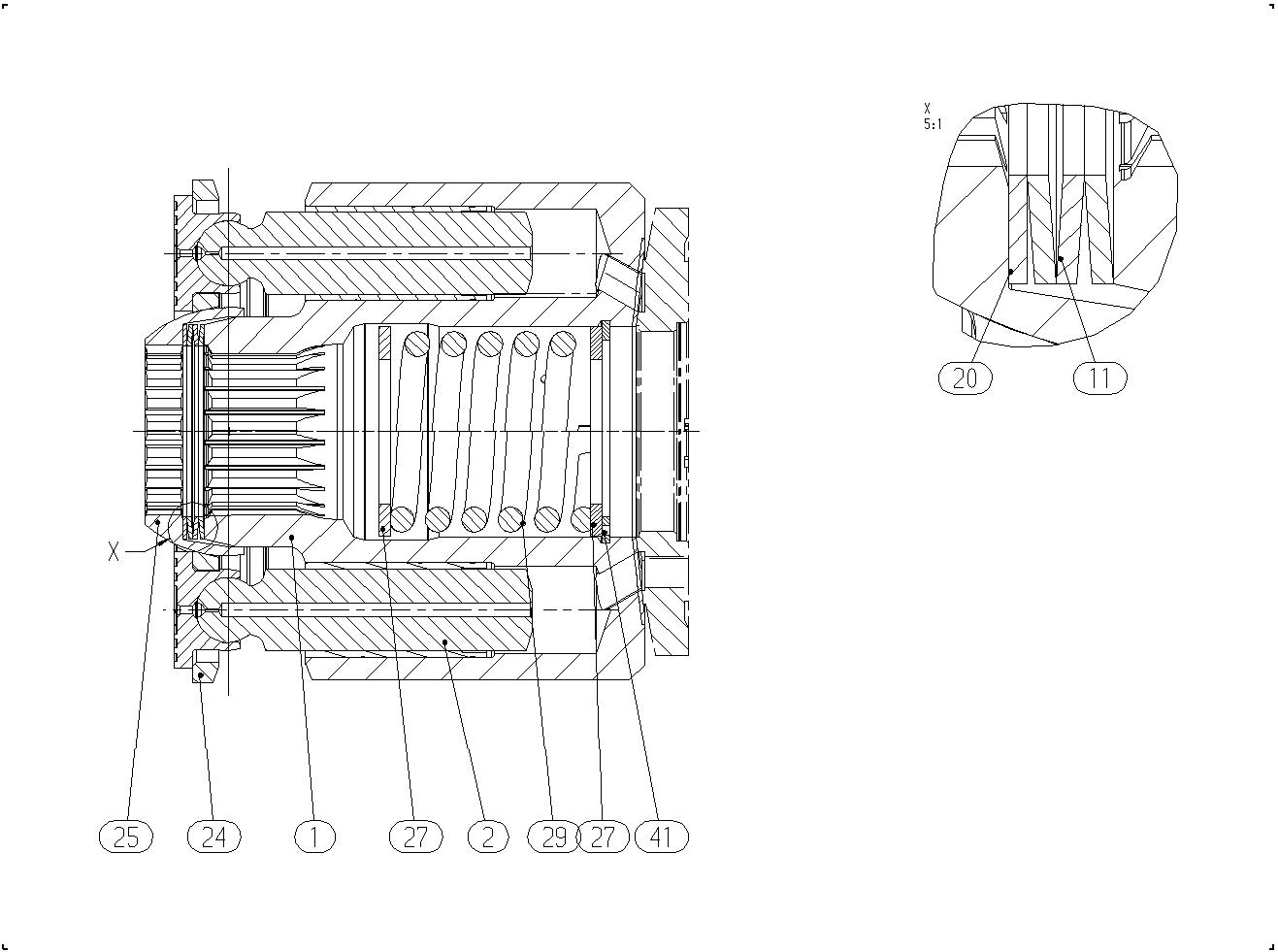

ROTARY GROUPR902096061
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902114099 | CYLINDER | 1 | ||
| R902118914 | PISTON PAD | 9 | ||
| R902103655 | CUP-SPRING STACK | 1 | ||
| R902094414 | SHIM RING | 1 | ||
| R902094413 | SHIM RING | 1 | ||
| R902094412 | SHIM RING | 1 | ||
| R902094411 | SHIM RING | 1 | ||
| R902114047 | RETAINING PLATE | 1 | ||
| R902094398 | RETAINING BALL | 1 | ||
| R902108842 | WASHER | 2 | ||
| R902096057 | COMPRESSION SPRING | 1 | ||
| R909083405 | RETAINING RING | 1 |
