Assembly

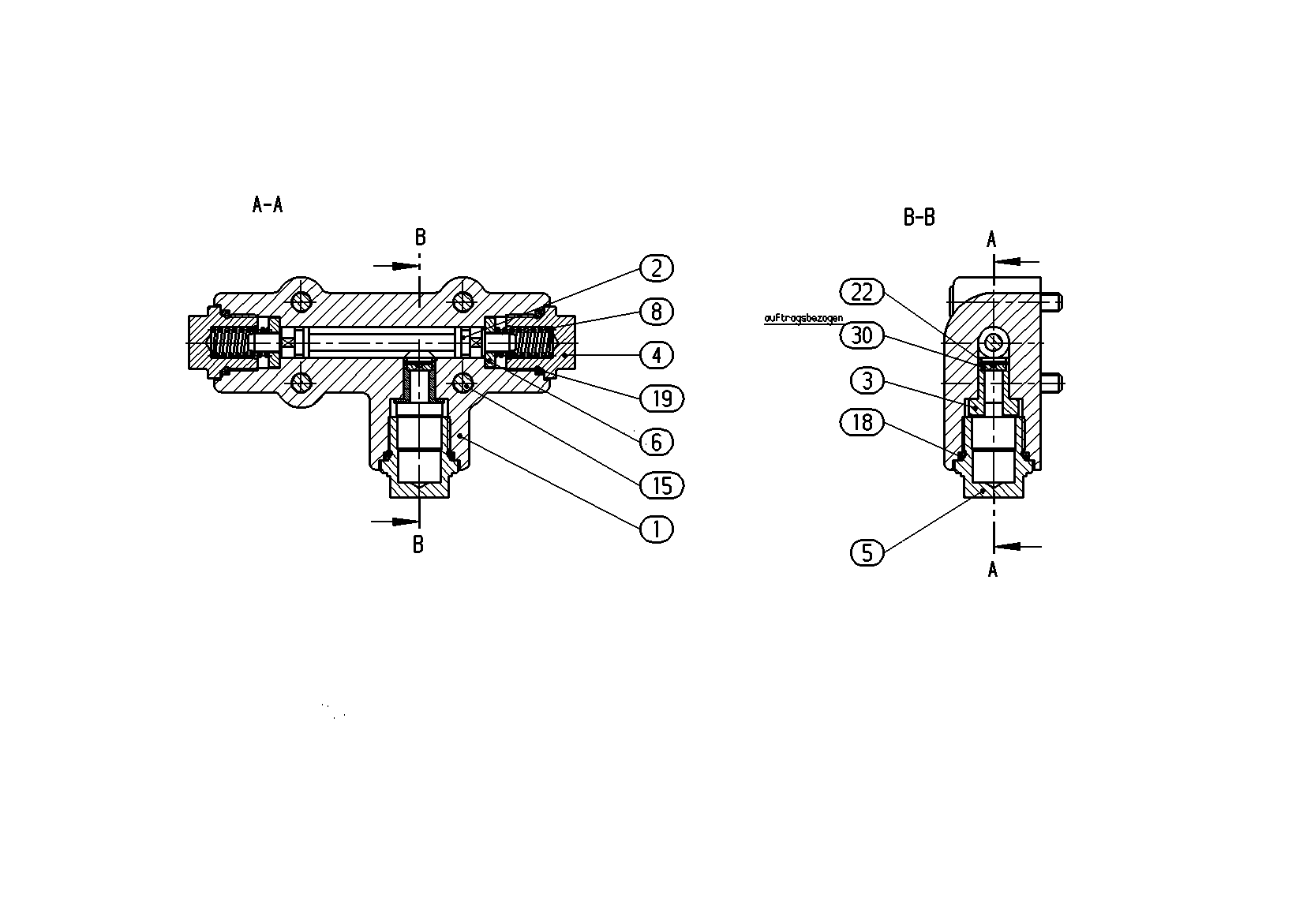

FLUSH/BOOST PRESSURE VALVER902096610
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909922087 | FLUSHING VALVE HOUSING | 1 | |
| R902000154 | FLUSHING PISTON | 1 | ||
| R909426156 | THROTTLE PISTON | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| 5 | R909417846 | SCREW PLUG | 1 | |
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909083024 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087938 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 2 | ||
| R909153012 | RETAINING RING | 1 |
