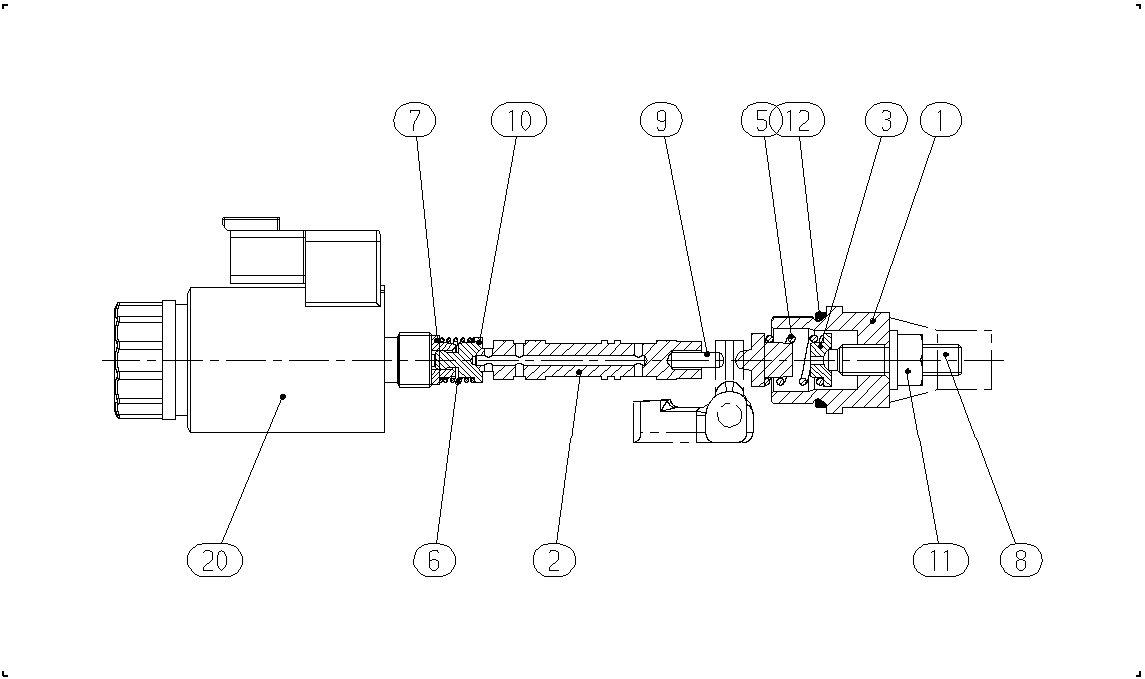

Assembly
CONTROL ELEMENTR902097518
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| R902066558 | SPRING BOLT | 1 | ||
| 4 | R909440787 | SPRING BOLT | 1 | |
| R902005694 | COMPRESSION SPRING | 1 | ||
| R909436459 | COMPRESSION SPRING | 1 | ||
| R902213895 | SPRING DISK | 1 | ||
| R909440424 | SETSCREW | 1 | ||
| R909440794 | BOLT | 1 | ||
| R902213897 | SPRING BOLT | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R902603442 | PROPORTIONAL SOLENOID | 1 |
