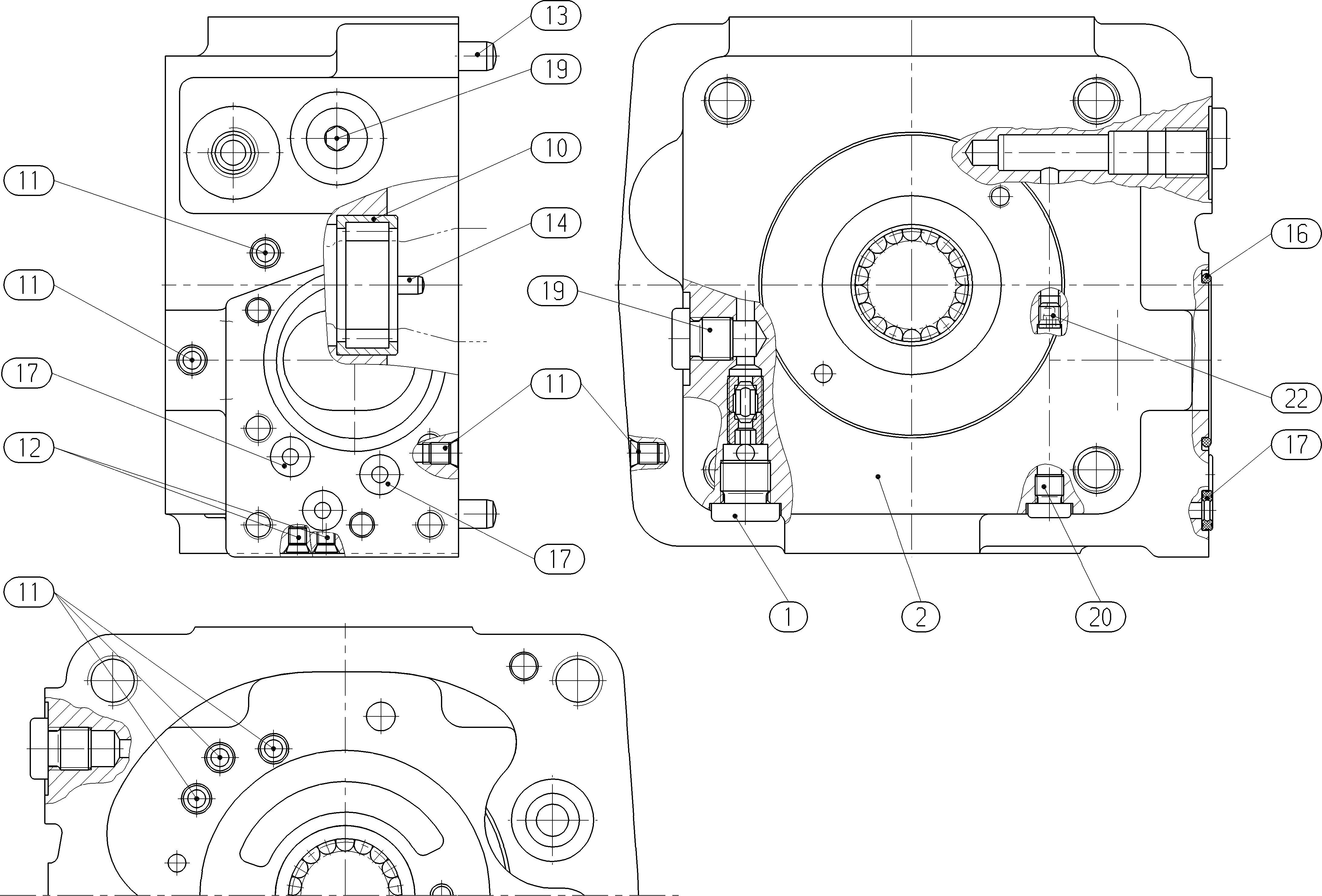

Assembly
CONNECTION PLATE, LLR902097808
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902081824 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902097806 | CONNECTION PLATE, LL | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 4 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909084213 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 1 | ||
| R909156673 | O-RINGD | 1 | ||
| R902603231 | R-RINGD | 3 | ||
| R909156650 | SCREW PLUGD | 1 | ||
| R909156863 | SCREW PLUGD | 2 | ||
| R909156493 | NOZZLE | 1 |
