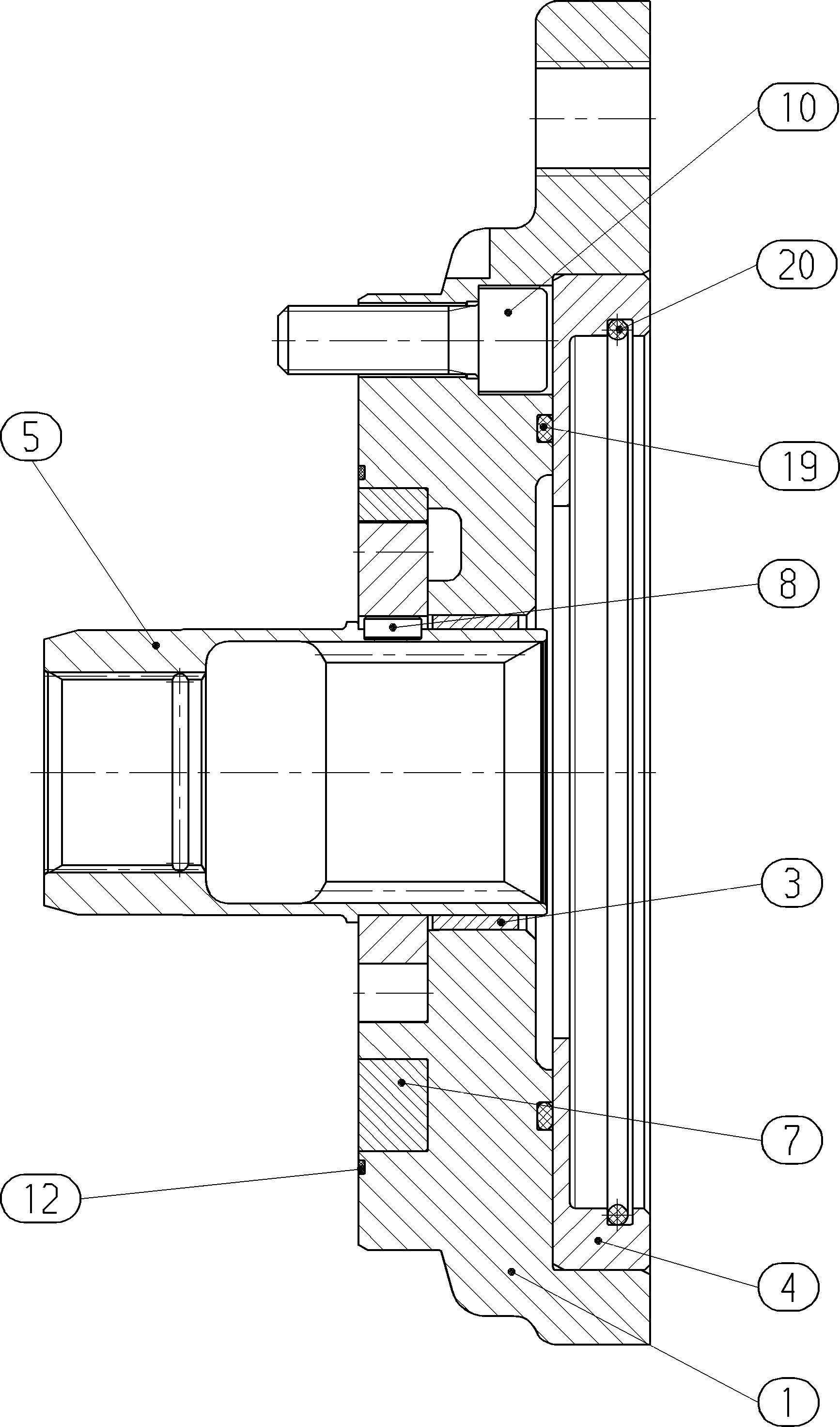

Assembly
INTERNAL GEAR PUMPR902097852
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902071483 | INTERMEDIATE FLANGE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R909439740 | INTERMEDIATE RING | 1 | ||
| R902097706 | THROUGH DRIVE SHAFT | 1 | ||
| R902085111 | WHEEL SET | 1 | ||
| R902112884 | PARALLEL KEY | 1 | ||
| R909083089 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R902601476 | SNAP RING | 1 | |
| R913026809 | KANTSEALD | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R913044948 | O-RINGD | 1 |
