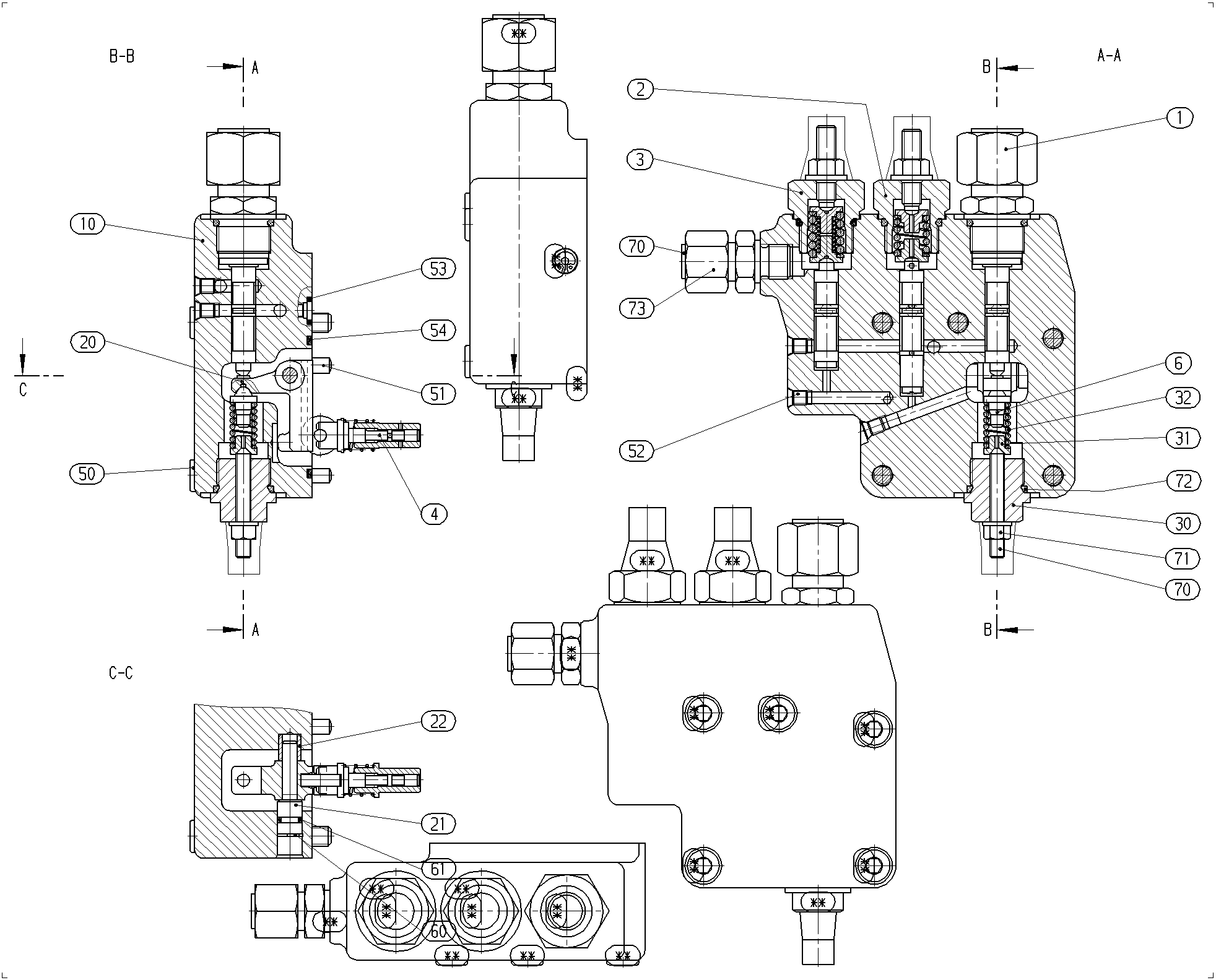

Assembly
REGULATORR902099817
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442914 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902081425 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909437612 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909600284 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R909445556 | SPRING BOLT | 1 | ||
| R902081944 | CONTROL HOUSING | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R902103920 | SCREW PLUG | 1 | ||
| R909417378 | SPRING DISK | 1 | ||
| R902036293 | COMPRESSION SPRING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| R909650109 | SETSCREW | 1 | ||
| R909087959 | GUARD PLUG | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083309 | THREADED FASTENER | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
