Assembly

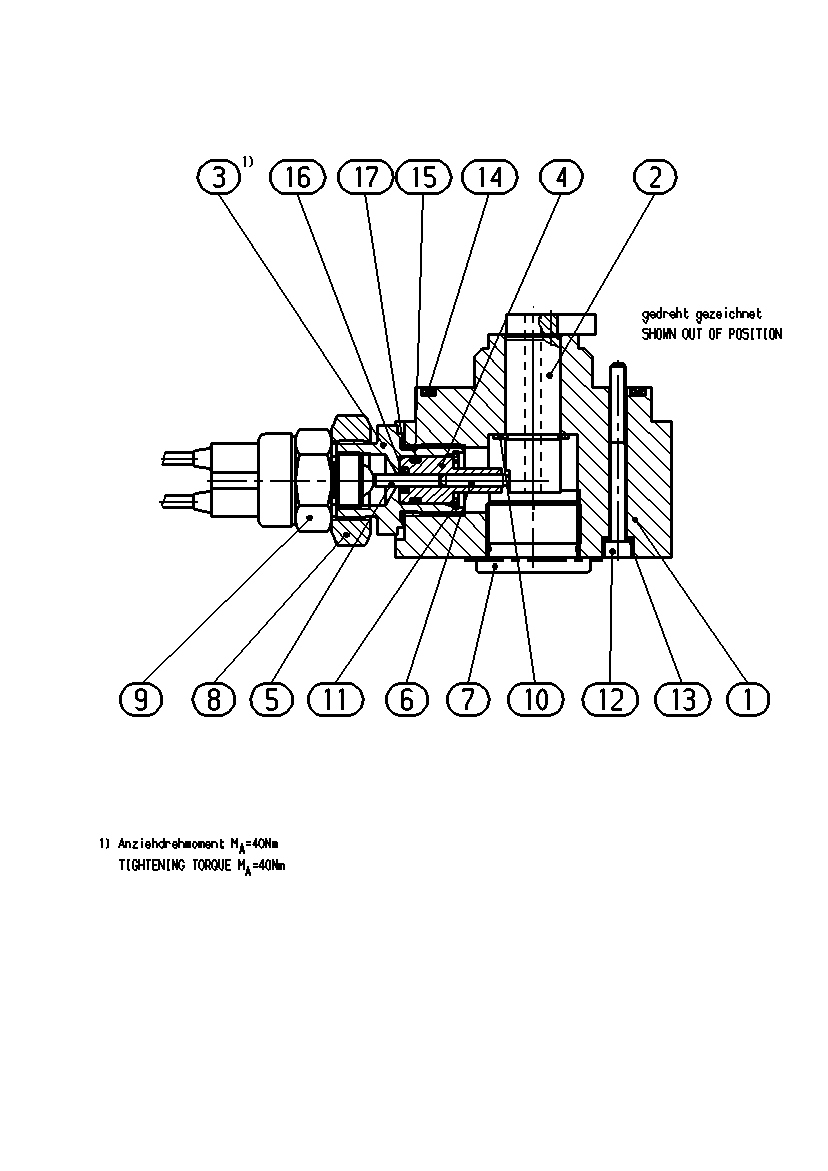

SWITCH ASSEMBLYR902099888
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902097508 | SENSOR HOUSING | 1 | ||
| R902097509 | SENSOR SHAFT | 1 | ||
| R902097513 | NECK | 2 | ||
| R902097512 | SEAL BUSHING | 2 | ||
| R902097510 | PIN | 2 | ||
| R902097511 | KEY PIN | 2 | ||
| 7 | R909153891 | SCREW PLUG | 1 | |
| R909830212 | HEXAGON NUT | 2 | ||
| 9 | R902601557 | SWITCH | 2 | |
| R909083347 | RETAINING RING | 1 | ||
| 11 | R909083380 | RETAINING RING | 2 | |
| R909156585 | SOCKET HEAD CAP SCREW | 3 | ||
| R902600407 | SEAL RING | 3 | ||
| R902600659 | O-RING | 1 | ||
| R909085709 | O-RING | 2 | ||
| 16 | R902600639 | O-RING | 2 | |
| R900012470 | SEAL RING | 2 |
