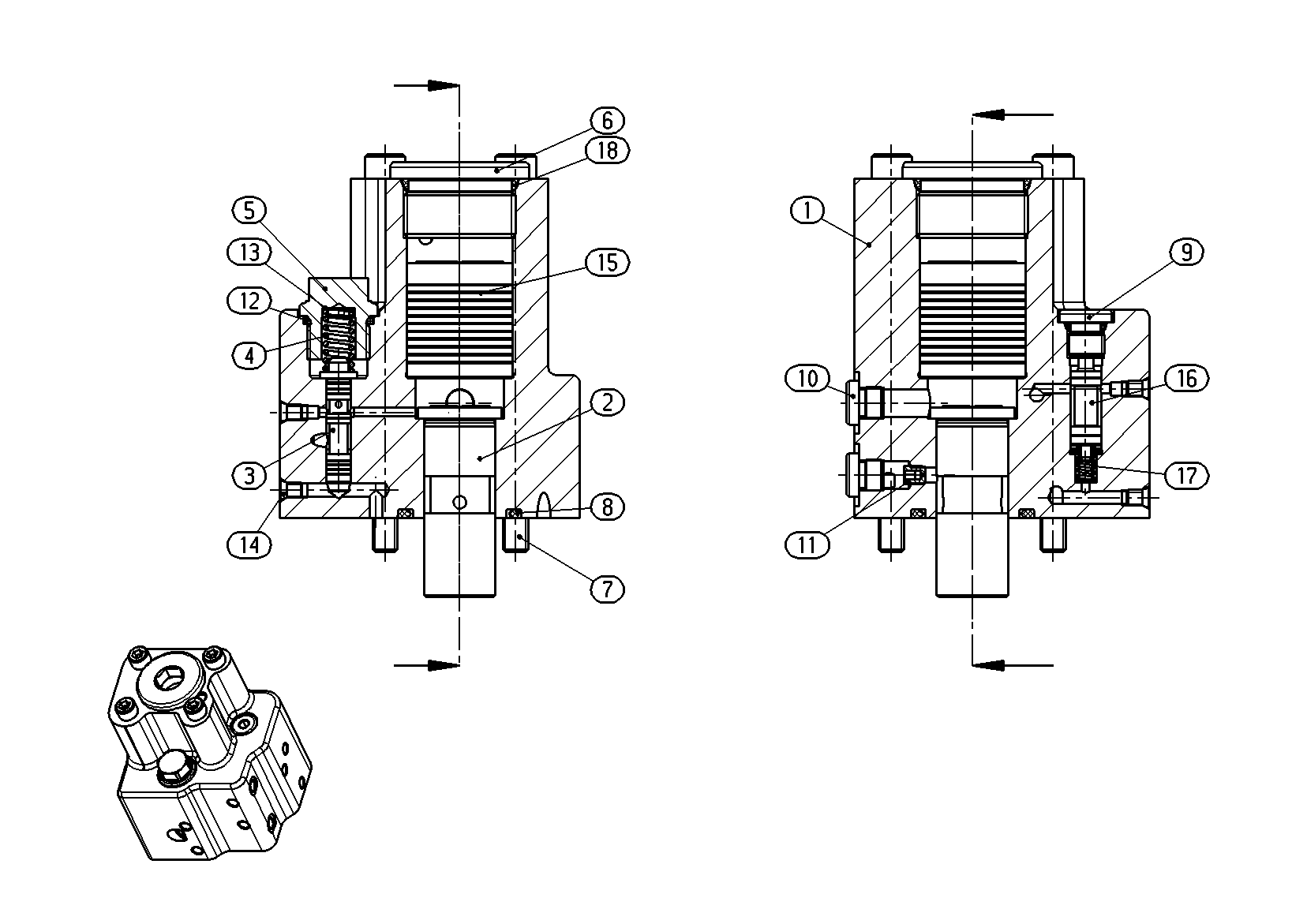

Assembly
STROKE LIMITERR902101478
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902096984 | HOUSING | 1 | ||
| R902101479 | PISTON | 1 | ||
| R902054842 | CONTROL PISTON | 1 | ||
| R902042053 | COMPRESSION SPRING | 1 | ||
| R902096811 | SCREW PLUG | 1 | ||
| R902065553 | SCREW PLUG | 1 | ||
| R987038622 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154053 | O-RINGD | 1 | ||
| R909831743 | SCREW PLUGD | 1 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909087938 | O-RING | 1 | ||
| R909157953 | SHIM RING | 1 | ||
| R909157955 | SHIM RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R902065552 | PISTON | 1 | ||
| R902065551 | CONTROL PISTON | 1 | ||
| R909435512 | COMPRESSION SPRING | 1 | ||
| R909832103 | O-RING | 1 |
