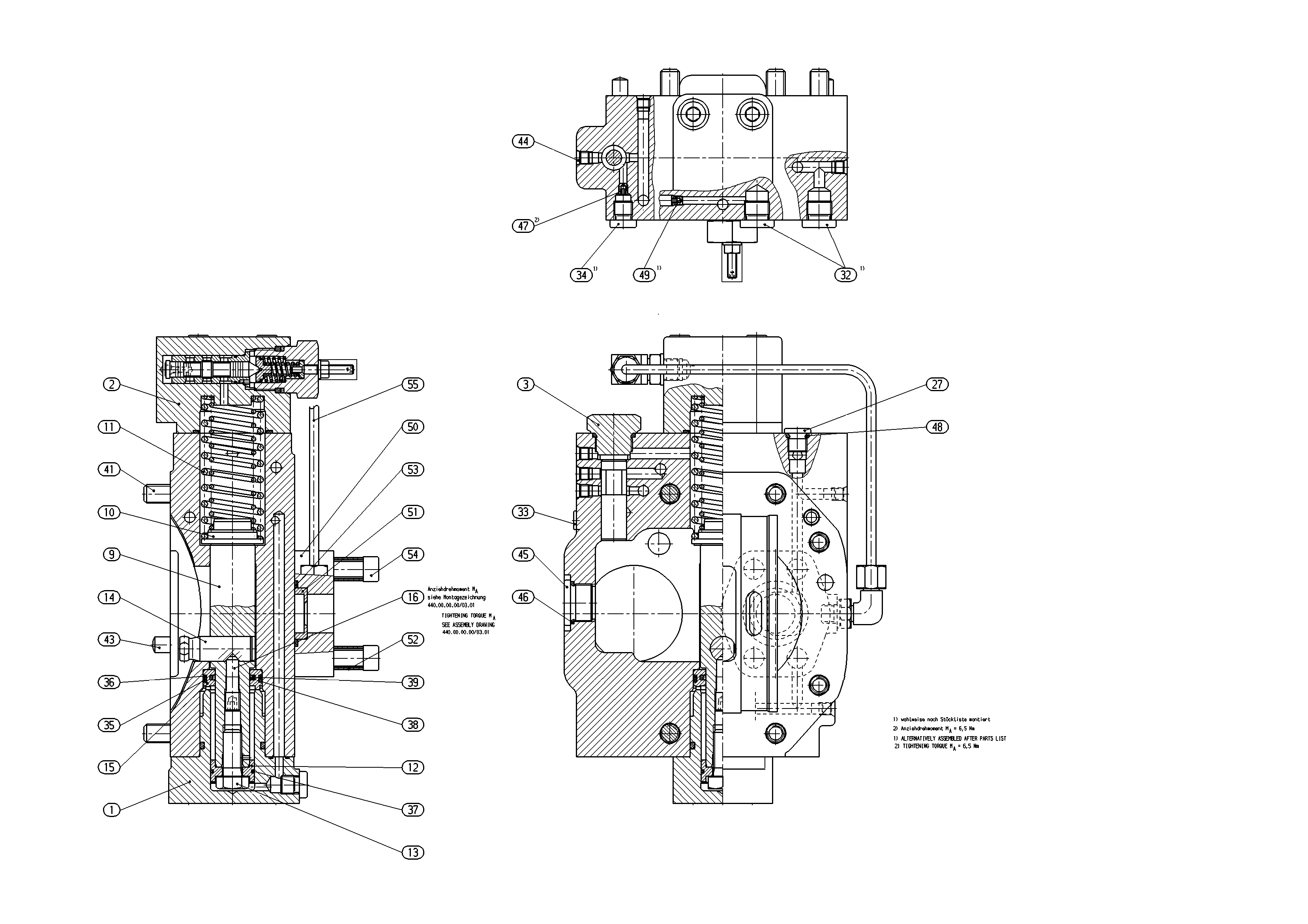

Assembly
CONTROLR902102514
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902000045 | GUIDE COVER Assembly parts list →L | 1 | ||
| R902102512 | SEQUENCE VALVE Assembly parts list →L | 1 | ||
| R902000218 | SEALING CAP Assembly parts list →L | 1 | ||
| 7 | R909651203 | COVER PLATE, COUNTER CLOCKWISE | 1 | |
| R909651602 | POSITIONING PISTON | 1 | ||
| R909426390 | SPRING DISK | 1 | ||
| 11 | R909426024 | COMPRESSION SPRING | 1 | |
| R909426389 | PISTON | 1 | ||
| R909083707 | HEXAGON SCREW | 1 | ||
| 14 | R909425510 | POSITIONING STUD | 1 | |
| R909426388 | SEAL RING | 1 | ||
| R909444969 | SETSCREW | 1 | ||
| R909083219 | SCREW PLUG | 1 | ||
| R909156864 | SCREW PLUGD | 2 | ||
| 33 | R909156863 | SCREW PLUGD | 1 | |
| R909156650 | SCREW PLUG | 1 | ||
| R909832103 | O-RINGD | 1 | ||
| R909157625 | BACKUP RINGD | 1 | ||
| R902602840 | STEEL SEALING RINGD | 1 | ||
| R909157628 | ROD SEALD | 1 | ||
| R909830919 | O-RINGD | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 6 | ||
| 43 | R913009669 | STRAIGHT PIN | 2 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909154316 | O-RINGD | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909152688 | O-RINGD | 1 | ||
| R909420532 | ORIFICE FLANGE | 1 | ||
| 51 | R902090069 | ORIFICE | 1 | |
| R909073315 | DISTANCE PIPE | 4 | ||
| R909153878 | O-RING | 1 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 4 | ||
| R902102511 | HYDRAULIC LINE Assembly parts list →L | 1 |
