Assembly

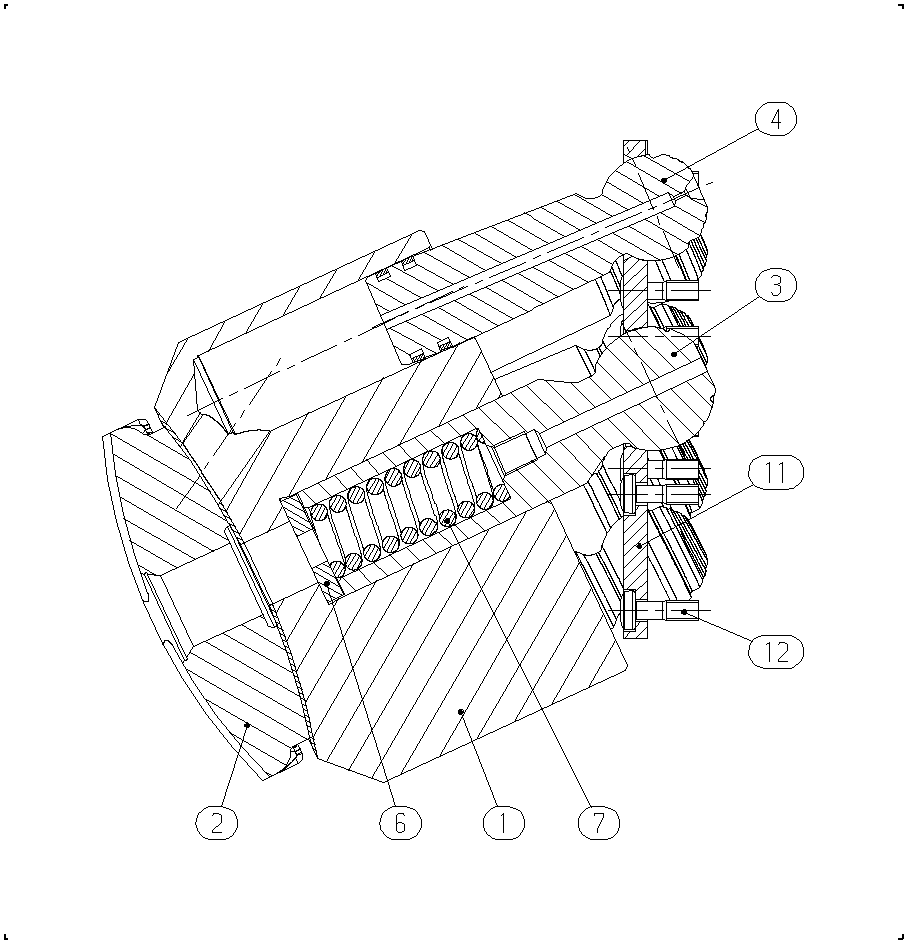

ROTARY GROUPR902102663
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902102652 | CYLINDER | 1 | ||
| R902102655 | CONTROL LENS | 1 | ||
| R902086665 | CENTER PIN | 1 | ||
| R902102661 | PISTON | 9 | ||
| R902077201 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902018126 | COMPRESSION SPRING | 1 | ||
| R902102653 | RETAINING PLATE | 1 | ||
| R902602493 | PAN-HEAD SCREW | 18 |
