Assembly

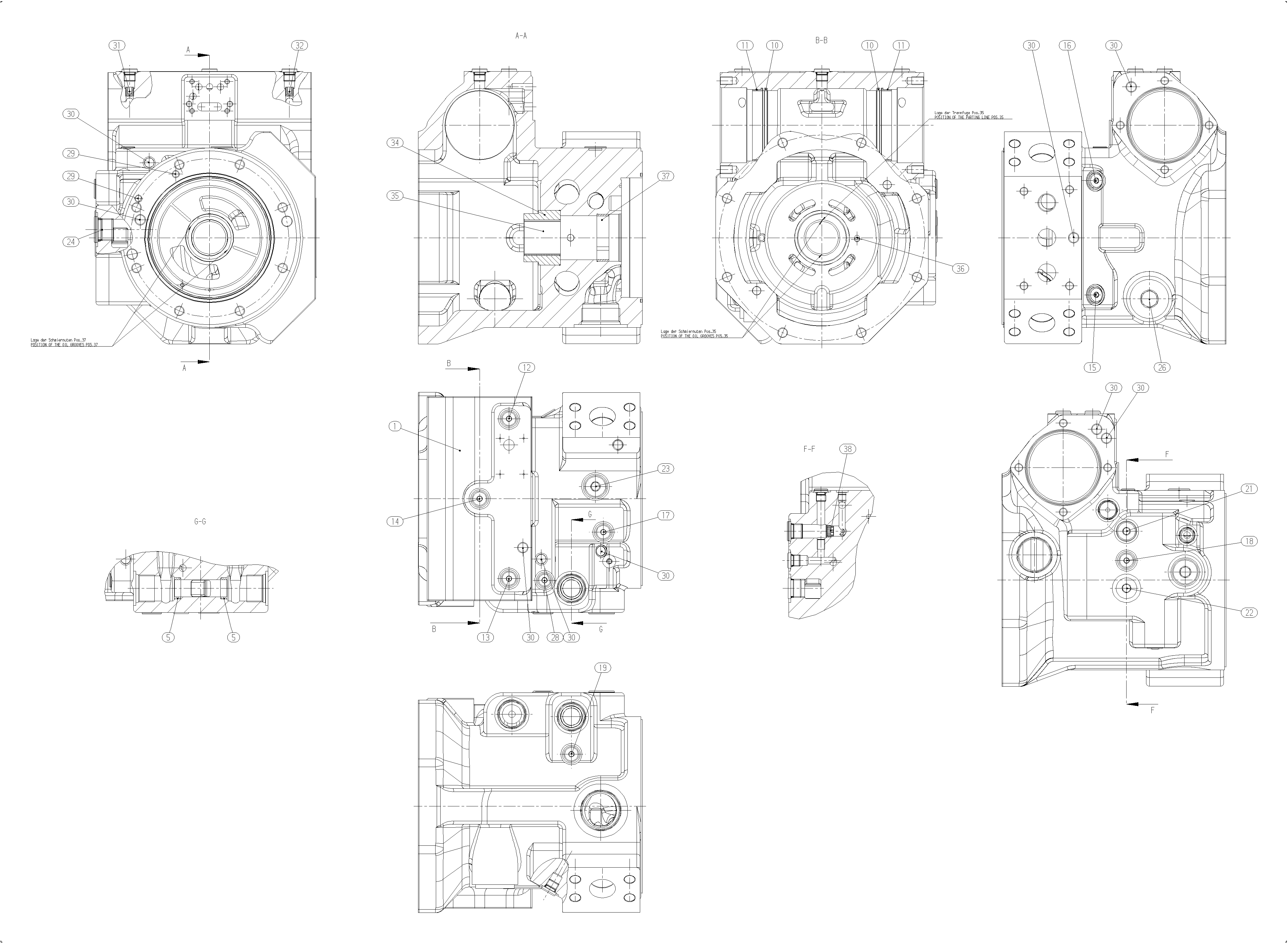

PUMP HOUSINGR902103060
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103145 | PUMP HOUSING | 1 | ||
| R902100680 | SLEEVE | 2 | ||
| R902603278 | SEAL RINGD | 2 | ||
| R902603072 | ROD GUIDANCE RING | 2 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R902602698 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUG | 1 | ||
| R902603131 | SCREW PLUG | 1 | ||
| R902602699 | SCREW PLUG | 1 | ||
| R909153418 | SCREW PLUG | 1 | ||
| R902602898 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909426700 | NOZZLE | 1 | ||
| R909426700 | NOZZLE | 1 | ||
| R902103136 | BUSHING | 1 | ||
| R902103135 | BUSHING | 1 | ||
| R902103277 | ECCENTRIC BOLT | 1 | ||
| R902095075 | BUSHING | 1 | ||
| R902602580 | FILTER | 1 |
