Assembly

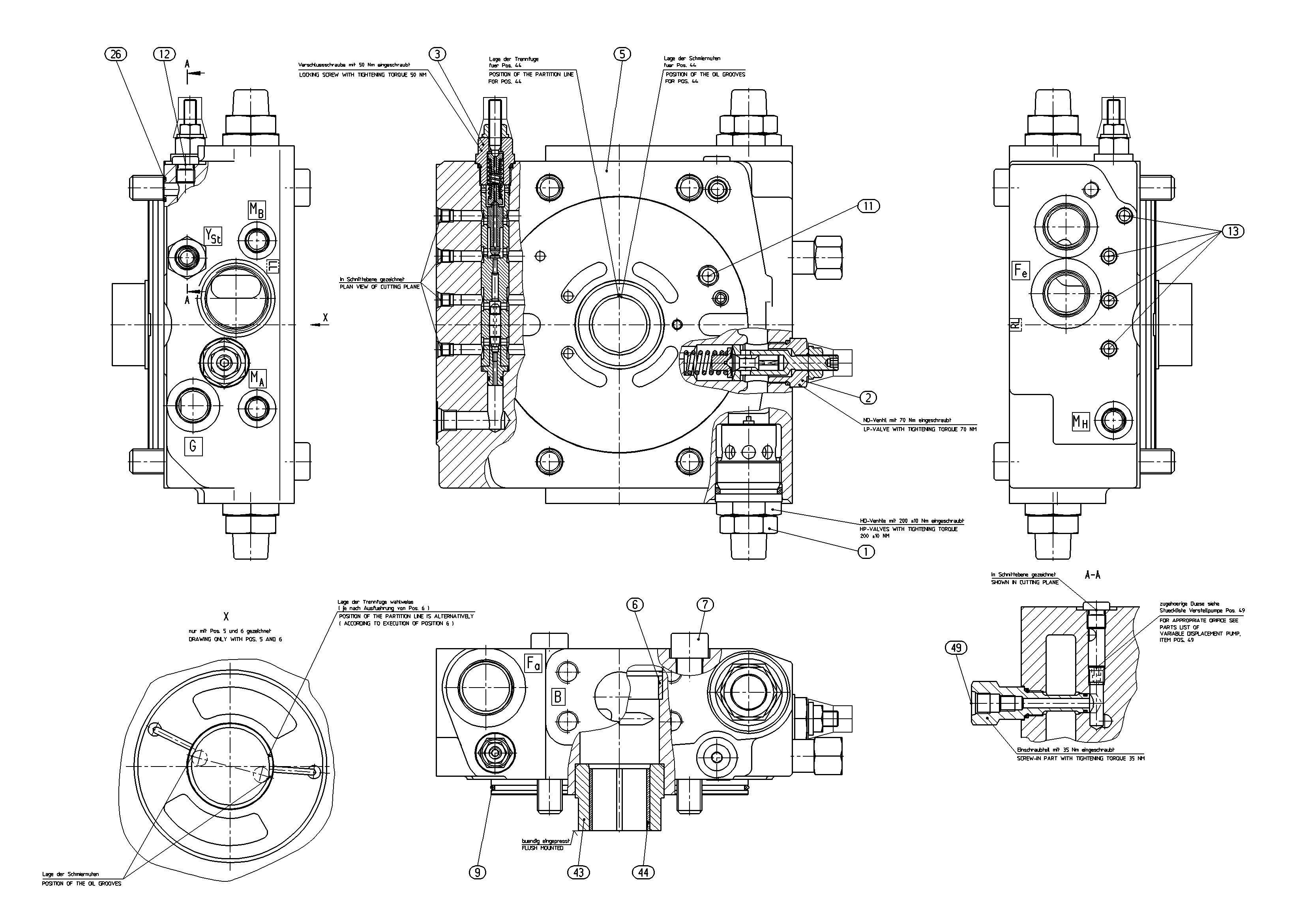

CONNECTION PLATER902103156
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902603843 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R902215658 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909433834 | PRESSURE CUT-OFF VALVE Assembly parts list →L | 1 | ||
| R909985889 | CONNECTION PLATE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830217 | O-RINGD | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUGD | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909432774 | BUSHING | 1 | ||
| R902260554 | BUSHING | 1 | ||
| R902071158 | THREADED PART Assembly parts list →L | 1 | ||
| 98 | R902002401 | SEAL KIT | 1 |
