Assembly

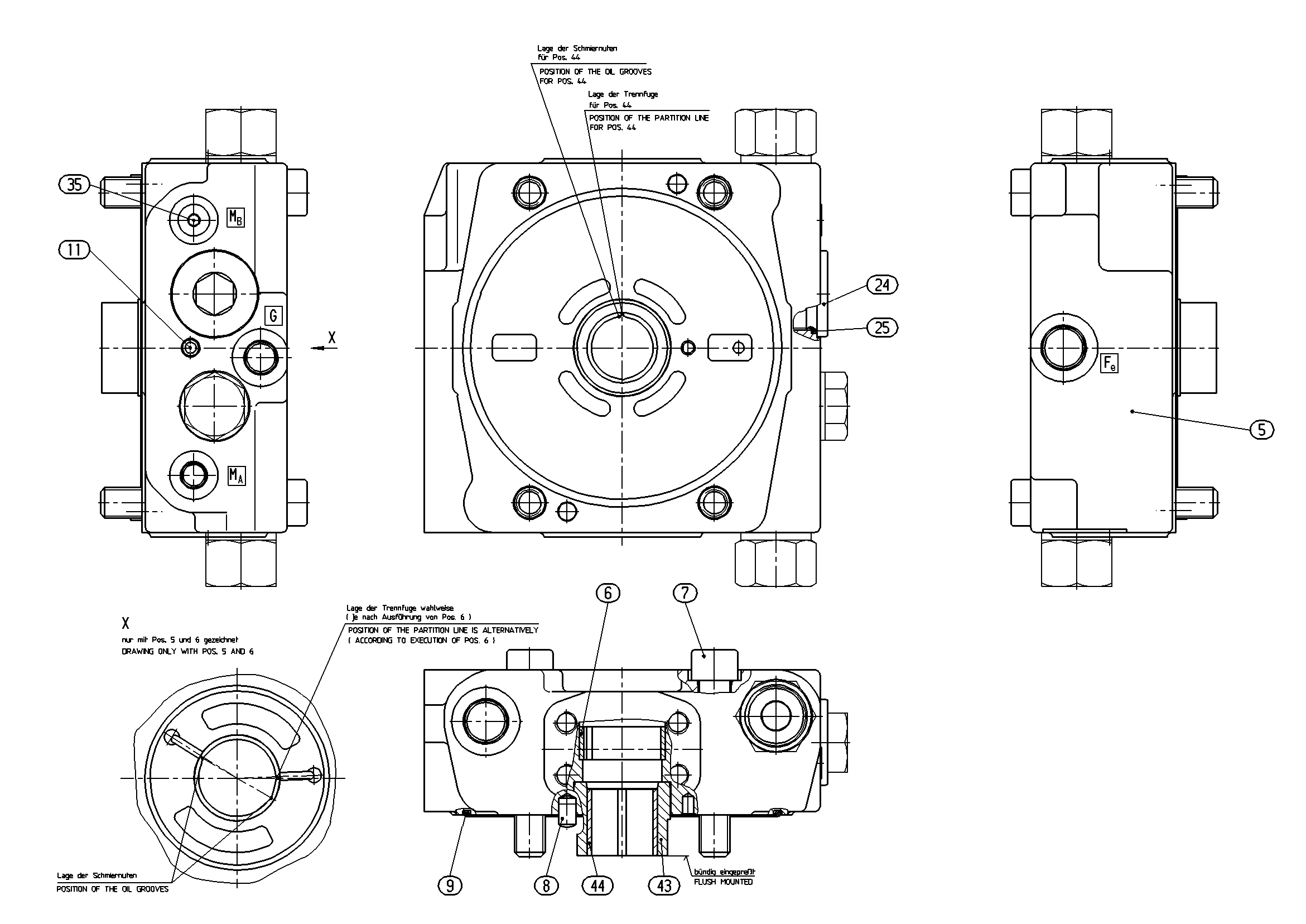

CONNECTION PLATER902103260
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103262 | CONNECTION PLATE | 1 | ||
| R902260548 | BUSHING | 1 | ||
| R909153817 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R909439249 | BUSHING | 1 | ||
| R902260549 | BUSHING | 1 | ||
| 55 | — | KANTSEAL | 1 | |
| 98 | R902002398 | SEAL KIT | 1 |
