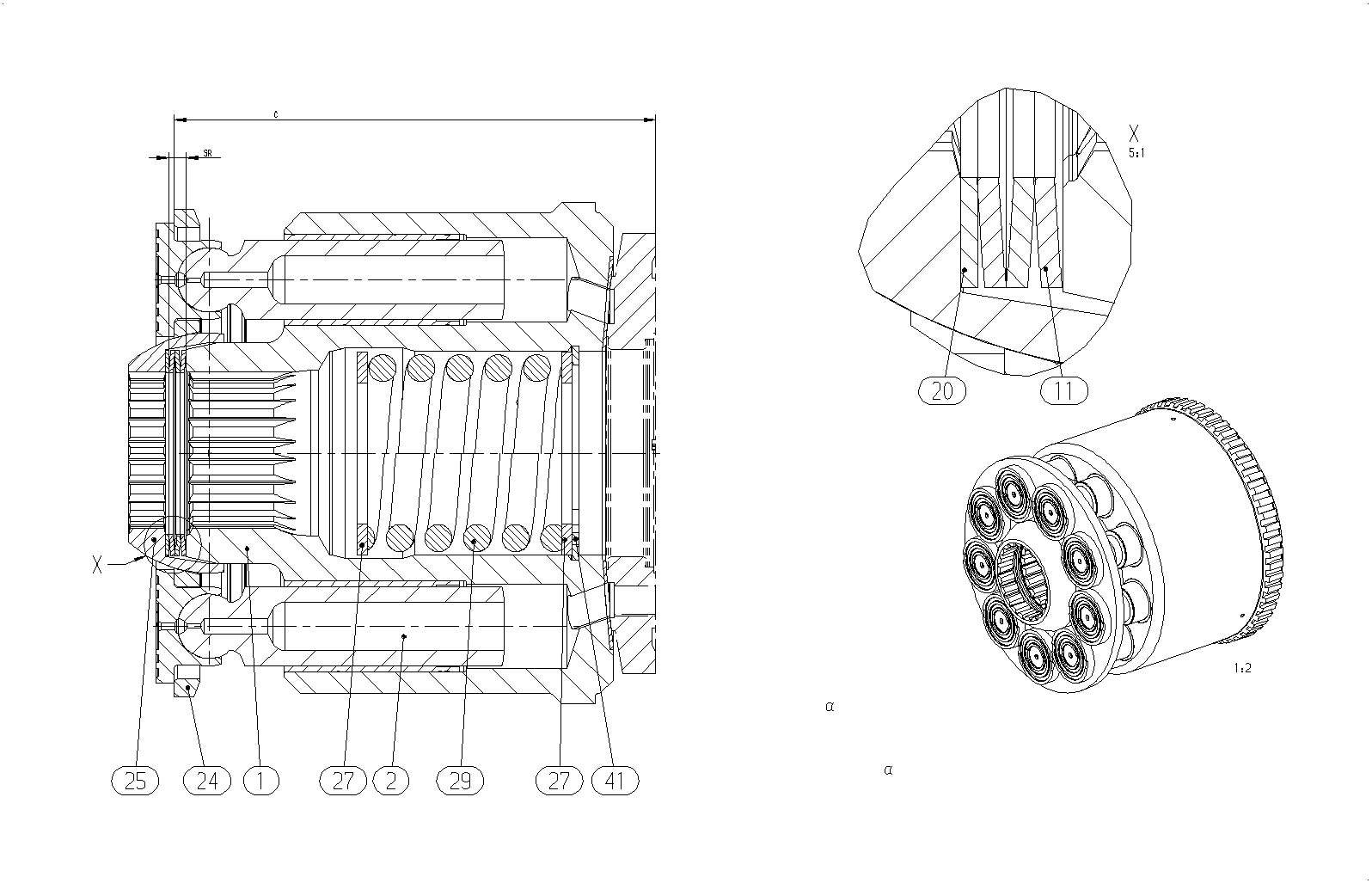

Assembly
ROTARY GROUPR902103393
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103391 | CYLINDER | 1 | ||
| R902097792 | PISTON PAD | 9 | ||
| R902103656 | CUP-SPRING STACK | 1 | ||
| R902096234 | SHIM RING | 1 | ||
| R902096235 | SHIM RING | 1 | ||
| R902096236 | SHIM RING | 1 | ||
| R902096237 | SHIM RING | 1 | ||
| R902108830 | RETAINING PLATE | 1 | ||
| R902096239 | RETAINING BALL | 1 | ||
| R902081969 | WASHER | 4 | ||
| R902096389 | COMPRESSION SPRING | 1 | ||
| R909151260 | RETAINING RING | 1 |
