Assembly

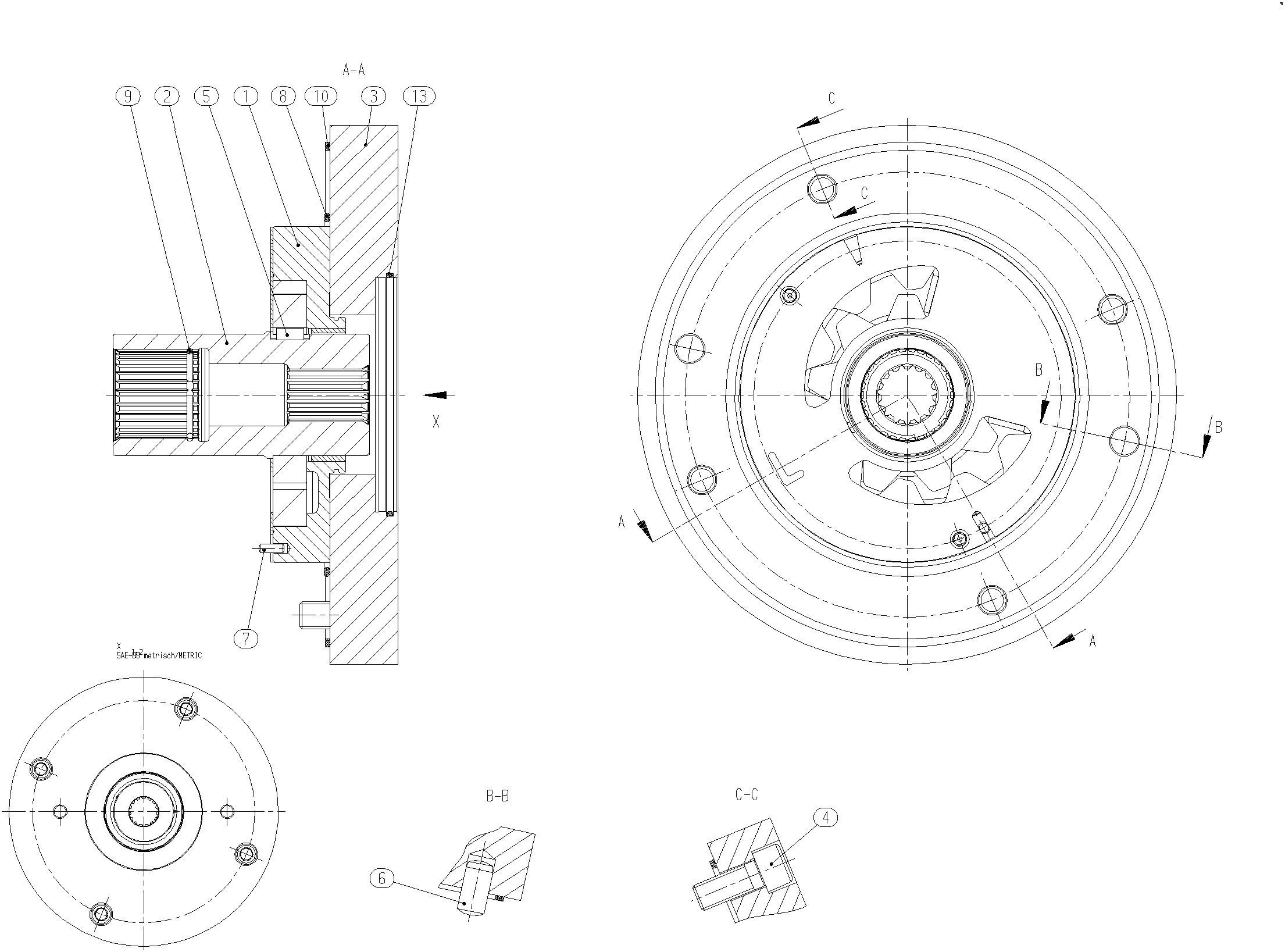

INTERNAL GEAR PUMPR902103425
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902095330 | HOUSING Assembly parts list →L | 1 | ||
| R902103424 | THROUGH DRIVE SHAFT | 1 | ||
| R902095316 | FLANGE | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R902095236 | PARALLEL KEY | 1 | ||
| R902603037 | STRAIGHT PIN | 2 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902603025 | O-RINGD | 1 | ||
| R909830236 | SNAP RING | 1 | ||
| R902602987 | KANTSEALD | 1 | ||
| R909154589 | O-RINGD | 1 |
