Assembly

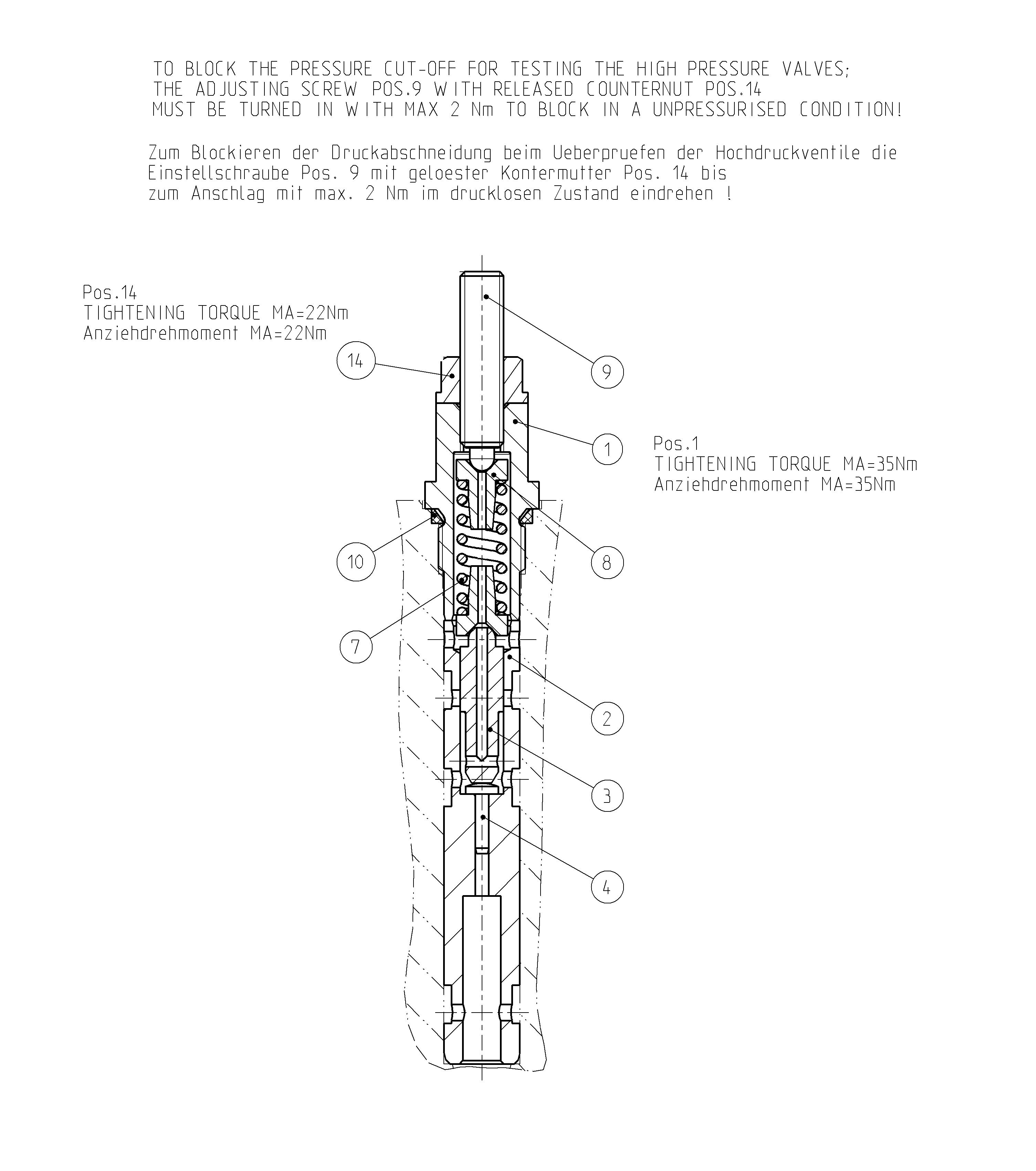

PRESSURE CUT-OFF VALVER902103769
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432161 | SCREW PLUG | 1 | ||
| R902103771 | VALVE BUSHING | 1 | ||
| R909432162 | CONTROL PISTON | 1 | ||
| R909432163 | PISTON | 1 | ||
| R902168277 | COMPRESSION SPRING | 1 | ||
| R902049851 | SPRING DISK | 2 | ||
| R909432167 | ADJUSTING SCREW | 1 | ||
| R909083752 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 |
