Assembly

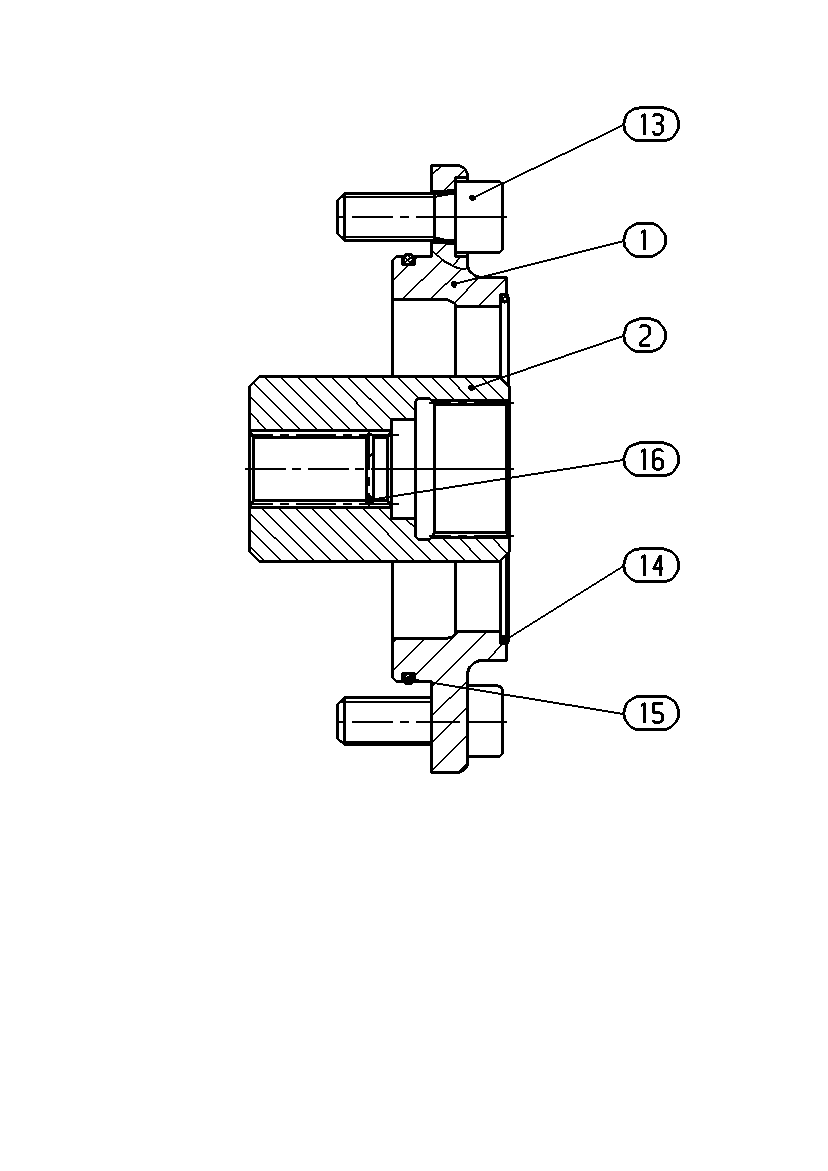

BELL HOUSINGR902104199
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444776 | FLANGE | 1 | ||
| 2 | R902012362 | COUPLING HUB | 1 | |
| 13 | R909083087 | SOCKET HEAD CAP SCREW | 4 | |
| 14 | R913044774 | O-RINGD | 1 | |
| 15 | R913032365 | O-RINGD | 1 | |
| R909157094 | SNAP RING | 1 | ||
| 98 | R902095514 | SEAL KIT | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444776 | FLANGE | 1 | ||
| 2 | R902012362 | COUPLING HUB | 1 | |
| 13 | R909083087 | SOCKET HEAD CAP SCREW | 4 | |
| 14 | R913044774 | O-RINGD | 1 | |
| 15 | R913032365 | O-RINGD | 1 | |
| R909157094 | SNAP RING | 1 | ||
| 98 | R902095514 | SEAL KIT | 1 |
