Assembly

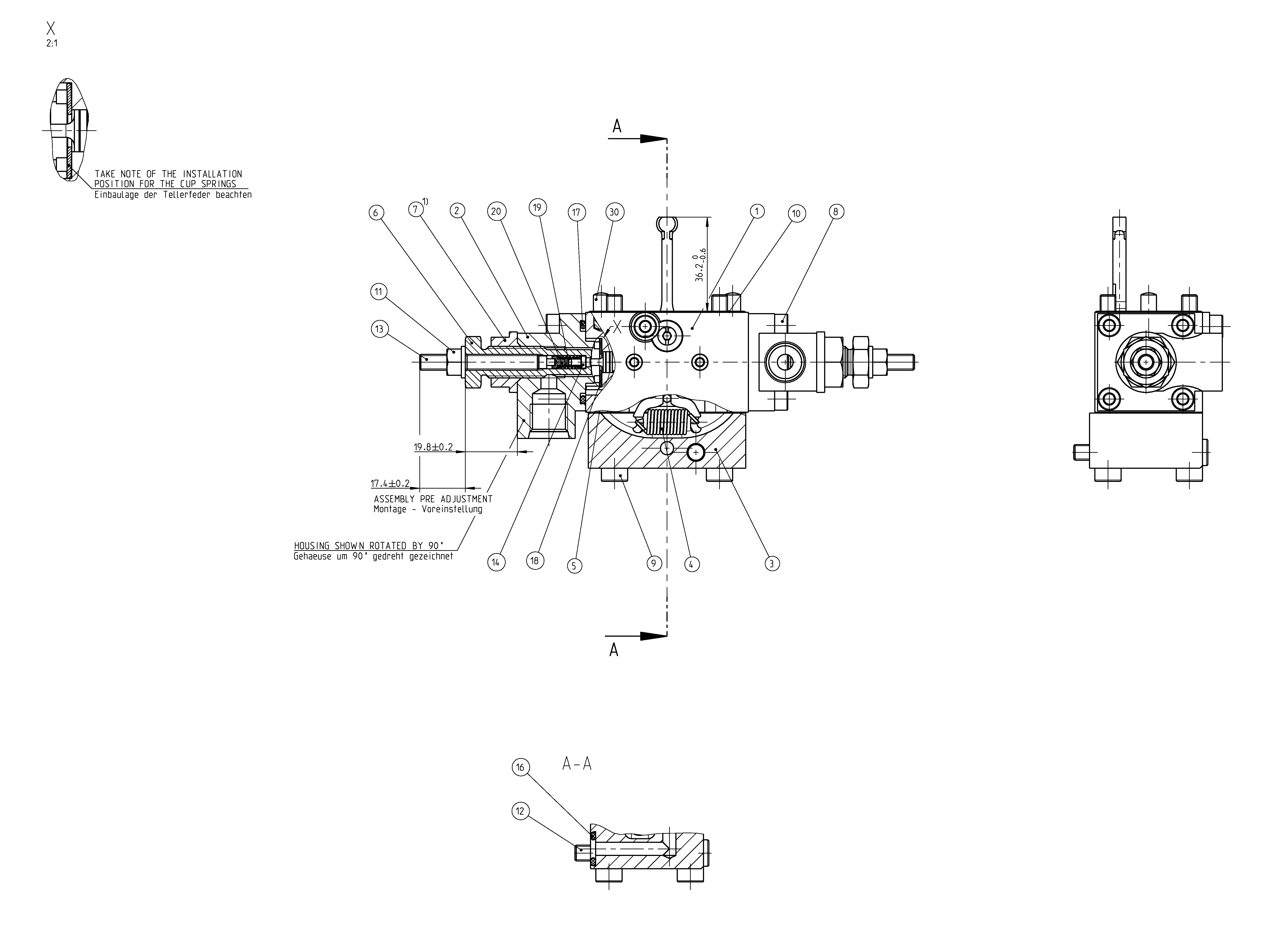

CONTROL MODULER902104867
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902104868 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902061634 | HOUSING | 2 | ||
| R902046034 | CONNECTION COVER | 1 | ||
| R902057694 | EXTENSION SPRING | 1 | ||
| R902603830 | SEAL | 1 | ||
| R902053238 | ADJUSTING SCREW | 2 | ||
| R909087405 | SEALING NUT | 2 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902603829 | SEAL | 1 | ||
| R909152425 | SEALING NUT | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| R902053239 | SETSCREW | 2 | ||
| R902053237 | SPRING DISK | 2 | ||
| R902600655 | O-RING | 1 | ||
| R909083764 | O-RING | 2 | ||
| — | DISC SPRING | 2 | ||
| R909443395 | COMPRESSION SPRING | 2 | ||
| R909443400 | SPRING DISK | 2 | ||
| R913009677 | STRAIGHT PIN | 2 |
