Assembly

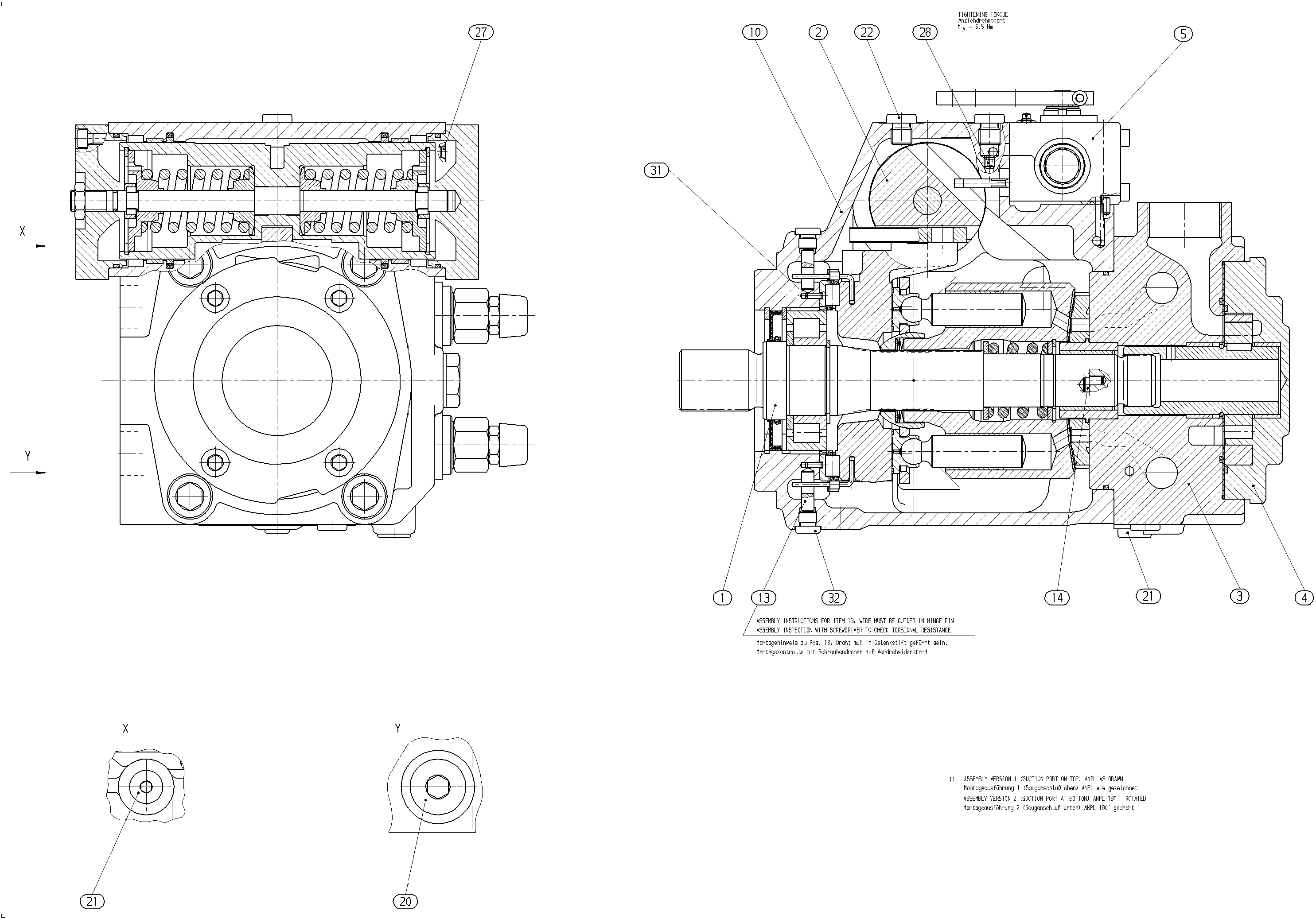

AXIAL-PISTON PUMPR902104886
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199723 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902011160 | CONTROL Assembly parts list →L | 1 | ||
| R909613516 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606659 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 8 | R909405730 | SEALING PLATE Assembly parts list →L | 1 | |
| 9 | R909434380 | SEALING COVER Assembly parts list →L | 1 | |
| R902020322 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| 46 | R909154982 | SETSCREW | 1 |
